Features: * 8-bit Microcontroller Core* 1K bytes on-board code EEPROM * 64 bytes data EEPROM* 64 bytes SRAM* Watchdog Reset* Multi-input Wakeup on all general purpose I/O pins* Fast 12-bit PWM timer with dead time control and half- bridge output drive- Input Capture Mode* 5-Ch 8-bit Analog-to-Digi...
FMS7401: Features: * 8-bit Microcontroller Core* 1K bytes on-board code EEPROM * 64 bytes data EEPROM* 64 bytes SRAM* Watchdog Reset* Multi-input Wakeup on all general purpose I/O pins* Fast 12-bit PWM timer...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Min. |
Typ. |
Max. |
Unit |
Ambient Storage Temperature |
-65 |
|
+150 |
°C |
Input Voltage |
-0.3 |
|
Vcc + 0.3 |
V |
Vcc Input Voltage |
|
4.0 |
|
V |
Lead Temperature (10s max) |
|
|
+300 |
°C |
Electrostatic Discharge on all pins |
2000 |
|
|
V |
Internal Voltage Regulator output current |
|
5 |
|
mA |
The FMS7401/7401L is a family of Digital Power Control-lers designed for applications requiring ease of digital basedcontrol over analog based implementations. The FMS7401/7401L family is an ideal solution to implement ballast control, motor control and battery management functions. This family integrates a wide variety of analog blocks with an 8-bit microcontroller core to offer a complementary feature set with high performance, low power and small size in a single chip.

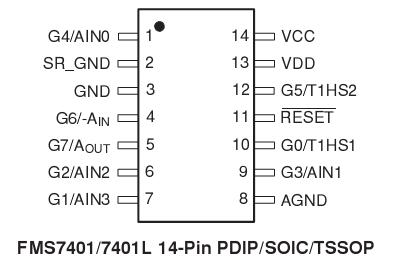

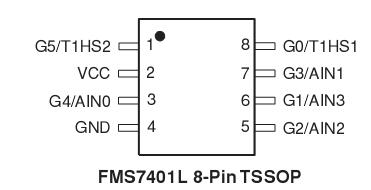

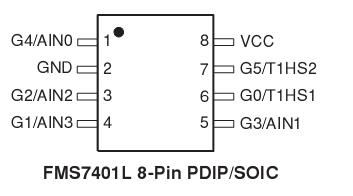

The FMS7401/7401L family is fabricated using CMOS technology and is fully static. This offers significant power savings. This family is available in both 8-pin and 14-pin PDIP packages. SOIC and TSSOP packages are available upon request.
The FMS7401L is intended for applications using a supply voltage in the 2.7V to 3.6V range, while the FMS7401 is suited for applications that use a supply voltage in the 10V to 13.5V range.
