FDW2509NZ

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V
Package / Case : TSSOP-8
Continuous Drain Current : 7.1 A
Resistance Drain-Source RDS (on) : 20 m Ohms
Configuration : Dual Common Dual Drain Dual Source


Features:

7.1 A, 20 V. R_DS(ON) = 20 m@ V_GS = 4.5 V
                      R_DS(ON) = 26 m@ V_GS = 2.5 V
Extended VGSS range (±12V) for battery applications
ESD protection diode (note 3)
High performance trench technology for extremely low R_DS(ON)
Low profile TSSOP-8 package


Application

Li-Ion Battery Pack


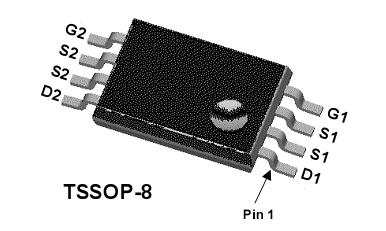

Pinout




Specifications

Symbol	Parameter	FDV302P	Units
VDSS	Drain-Source Voltage	20	V
VGSS	Gate-Source Voltage	±12	V
ID	Drain Current Continuous (Note 1a) Pulsed	7.1	A
		30
PD	Power Dissipation for Single Operation (Note 1a) (Note 1b)	1.6	W
		1.1
TJ,TSTG	Operating and Storage Temperature Range	55 to +150	°C

Description

This FDW2509NZ N-Channel 2.5V specified MOSFET is a rugged  gate version of Fairchild's Semiconductor's advanced PowerTrench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V 12V).
