FDW2502PZ

MOSFET TSSOP-8 P-CH DUAL

product image

FDW2502PZ Picture
See larger image
SeekIC No. : 00166736 Detail

FDW2502PZ: MOSFET TSSOP-8 P-CH DUAL

FDW2502PZ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FDW2502PZ
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V Continuous Drain Current : 4.4 A
Configuration : Dual Dual Source Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : TSSOP-8
Packaging : Reel

Description

Resistance Drain-Source RDS (on) :
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : 4.4 A
Package / Case : TSSOP-8
Configuration : Dual Dual Source


Features:

4.4 A, 20 V.RDS(ON) = 0.035 @ VGS = 4.5 V
                           RDS(ON) = 0.057 @ VGS = 2.5 V.
Extended VGSS range (±12V) for battery applications.
ESD protection diode (note 3).
High performance trench technology for extremely low RDS(ON) .
Low profile TSSOP-8 package.



Application

Load switch
Motor drive
DC/DC conversion
Power management



Pinout

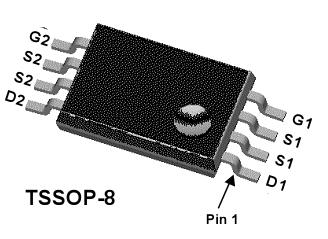

Connection Diagram


Specifications

Symbol Parameter Ratings Units
VDSS Drain-Source Voltage -20 V
VGSS Gate-Source Voltage ±12 V
ID Drain Current Continuous (Note 1a)
Pulsed		 4.4 A
30
PD Total Power Dissipation (Note 1a)
(Note 1b)		 1.0 W
0.6
TJ, TSTG Operating and Storage Junction Temperature Range 55 to +150



Description

This P-Channel 2.5V specified MOSFET FDW2502PZ is a rugged gate version of Fairchild's Semiconductor's advanced PowerTrench process. It has been optimized for power
management applications with a wide range of gate drive voltage (2.5V 12V).
