FDW2502P

MOSFET TSSOP-8 P-CH DUAL

product image

FDW2502P Picture
SeekIC No. : 00163412 Detail

FDW2502P: MOSFET TSSOP-8 P-CH DUAL

floor Price/Ceiling Price

Part Number:
FDW2502P
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : - 20 V
Gate-Source Breakdown Voltage : +/- 12 V Continuous Drain Current : 4.4 A
Resistance Drain-Source RDS (on) : 35 m Ohms Configuration : Dual Dual Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : TSSOP-8 Packaging : Reel

Description

Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Drain-Source Breakdown Voltage : - 20 V
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : 4.4 A
Package / Case : TSSOP-8
Configuration : Dual Dual Source
Resistance Drain-Source RDS (on) : 35 m Ohms


Features:

4.4 A, 20 V. RDS(ON) = 0.035 @ VGS = 4.5 V
                            RDS(ON) = 0.057 @ VGS = 2.5 V.
Extended VGSS range (±12V) for battery applications.
High performance trench technology for extremely low RDS(ON)
Low profile TSSOP-8 package.



Application

Load switch
Motor drive
DC/DC conversion
Power management

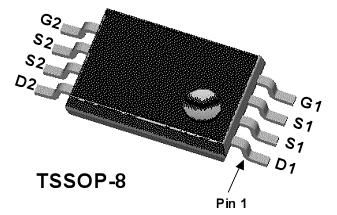

Pinout

  Connection Diagram


Specifications

Symbol Parameter Ratings Units
VDSS Drain-Source Voltage -20 V
VGSS Gate-Source Voltage ±12 V
ID Drain Current Continuous (Note 1a)
Pulsed
4.4 A
30
PD Total Power Dissipation (Note 1a)
(Note 1b)
1.0 W
0.6
TJ, TSTG Operating and Storage Junction Temperature Range 55 to +150



Description

This P-Channel 2.5V specified MOSFET FDW2502P is a rugged gate version of Fairchild's Semiconductor's advanced PowerTrench process. It has been optimized for power
management applications with a wide range of gate drive voltage (2.5V 12V).


Parameters:

Technical/Catalog InformationFDW2502P
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 P-Channel (Dual)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C4.4A
Rds On (Max) @ Id, Vgs35 mOhm @ 4.4A, 4.5V
Input Capacitance (Ciss) @ Vds 1465pF @ 10V
Power - Max600mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs21nC @ 5V
Package / Case8-TSSOP
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDW2502P
FDW2502P
