Features:

• F2MC-8FX CPU core Instruction set that is optimum to the controllers
• Multiplication and division instructions
• 16-bit arithmetic operation
• Bit test branch instruction
• Bit manipulation instructions etc.
• Clock
• Main clock
• Main PLL clock
• Sub clock (for dual clock product)
• Sub PLL clock (for dual clock product)
• Timer
• 8/16-bit compound timer × 2 channels
• 8/16-bit PPG × 2 channels
• 16-bit PPG
• Time-base timer
• Watch prescaler (for dual clock product)
• LIN-UART
• Full duplex double buffer
• Clock asynchronous (UART) or Clock synchronous (SIO) serial data transfer capable
• UART/SIO
• Full duplex double buffer
• Clock asynchronous (UART) or Clock synchronous (SIO) serial data transfer capable
• I2C*
Built-in wake-up function
• External interrupt
• Interrupt by edge detection (rising, falling, or both edges can be selected)
• Can be used to recover from low-power consumption (standby) modes.
• 8/10-bit A/D converter
• 8-bit or 10-bit resolution can be selected
• Low-power consumption (standby) mode
• Stop mode
• Sleep mode
• Watch mode (for dual clock product)
• Time-base timer mode
• I/O port:
• The number of maximum ports
• Single clock product : 39 ports
• Dual clock product : 37 ports
• Port configuration
• General-purpose I/O ports (N-ch open drain) : 2 ports
• General-purpose I/O ports (CMOS) : Single clock product : 37 ports
Dual clock product : 35 ports
• Flash memory security function Protects the content of Flash memory (Flash memory device only)
* : Purchase of Fujitsu I2C components conveys a license under the Philips I2C Patent Rights to use, these mponents
in an I2C system provided that the system conforms to the I2C Standard Specification as defined by Philips.




Pinout

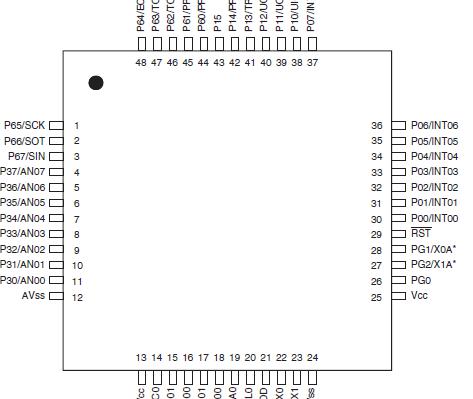

  Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage*1 VCC
AVCC
VSS − 0.3 VSS + 4.0 V *2
Input voltage*1 VI1 VSS − 0.3 VSS + 4.0 V Other than P50, P51*3
VI2 Vss − 0.3 VSS + 6.0   P50, P51
Output voltage*1 VO VSS − 0.3 VSS + 4.0 V *3
Maximum clamp current ICLAMP − 2.0 +2.0 mA Applicable to pins*4
Total maximum clamp
current
|ICLAMP| - 20 mA Applicable to pins*4
"L" level maximum
output current
IOL1 - 15 mA Other than P00 to P07
IOL2 15 P00 to P07
"L" level average
current
IOLAV1 - 4 mA Other than P00 to P07
Average output current =
operating current * operating ratio
(1 pin)
IOLAV2 12 Other than P00 to P07
Average output current =
operating current * operating ratio
(1 pin)
"L" level total maximum
output current
IOL - 100 mA
"L" level total average
output current
IOLAV - 50 mA Total average output current =
operating current * operating ratio
(Total of pins)
"H" level maximum
output current
IOH1 - -15 mA Other than P00 to P07
IOH2 -15 P00 to P07
"H" level average
current
IOHAV1 - -4 mA Other than P00 to P07
Average output current =
operating current * operating ratio
(1 pin)
IOHAV2 -8 Other than P00 to P07
Average output current =
operating current * operating ratio
(1 pin)
"H" level total maximum
output current
IOH - -100 mA
"H" level total average
output current
IOHAV - -50 mA Total average output current =
operating current * operating ratio
(Total of pins)
Power consumption Pd - 320 mW
Operating temperature TA −40 +85
Storage temperature Tstg −55 +150



Description

The MB95110B series is general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions.
Note : F2MC is the abbreviation of FUJITSU Flexible Microcontroller.
