F2MC-16LX MB90540

Features:

• Clock
Embedded PLL clock multiplication circuit Operating clock (PLL clock) can be selected from : divided-by-2 of oscillation or one to four times the oscillation Minimum instruction execution time : 62.5 ns (operation at oscillation of 4 MHz, four times the oscillation clock) Subsystem Clock : 32 kHz

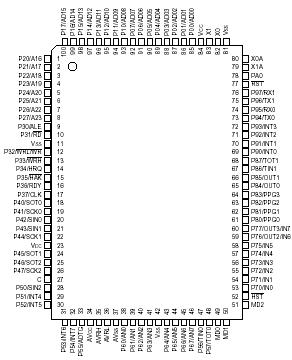

Pinout

Specifications

Parameter	Symbol	Value		Units	Remarks
		Min	Max
Power supply voltage	VCC	VSS - 0.3	VSS + 6.0	V
	AVCC	VSS - 0.3	VSS + 6.0	V	VCC = AVCC *1
	AVRH, AVRL	VSS - 0.3	VSS + 6.0	V	AVCC ³ AVRH/AVRL, AVRH ³ AVRL *1
Input voltage	VI	VSS - 0.3	VSS + 6.0	V	*2
Output voltage	VO	VSS - 0.3	VSS + 6.0	V	*2
Maximum clamp current	ICLAMP	-2.0	+2.0	mA	*6
Total maximum clamp current	|ICLAMP|		20	mA	*6
"L" level max output current	IOL		15	mA	*3
"L" level avg. output current	IOLAV		4	mA	*4
"L" level max overall output current	IOL		100	mA
"L" level avg. overall output current	IOLAV		50	mA	*5
"H" level max output current	IOH		-15	mA	*3
"H" level avg. output current	IOHAV		-4	mA	*4
"H" level max overall output current	IOH		-100	mA
"H" level avg. overall output current	IOHAV		-50	mA	*5
Power consumption	PD		500	mW	Flash device
			400	mW	Mask ROM
Operating temperature	TA	-40	+85		MB90F543/F549
		-40	+105		Other than MB90F543/F549
Storage temperature	TSTG	-55	+150

Description

The MB90540/545 series with FULL-CAN*¹ and FLASH ROM is specially designed for automotive and industrial applications. Its main features are two on board CAN Interfaces (one for MB90V545 series) , which conform to V2.0 Part A and Part B, supporting very flexible message buffer scheme and so offering more functions than a normal full CAN approach. The instruction set by F2MC-16LX CPU core inherits an AT architecture of the F²MC*2 family with additional instruction sets for high-level languages, extended addressing mode, enhanced multiplication/ division instructions, and enhanced bit manipulation instructions.The micro controller has a 32-bit accumulator for processing long word data.The MB90540/545 series has peripheral resources of 8/10-bit A/D converters, UART (SCI) , extended I/O serial interfaces, 8/16-bit timer, I/O timer (input capture (ICU) , output compare (OCU) ) .
1 : Controller Area Network (CAN) -License of Robert Bosch GmbH.
2 : F²MC stands for FUJITSU Flexible Microcontroller.
