F2MC-8FX MB95140

Features: • F2MC-8FX CPU core Instruction set optimized for controllers• Multiplication and division instructions• 16-bit arithmetic operations• Bit test branch instruction• Bit manipulation instructions etc.• Clock• Main clock• Main PLL clock•...

product image

F2MC-8FX MB95140 Picture
See larger image
SeekIC No. : 004340034 Detail

F2MC-8FX MB95140: Features: • F2MC-8FX CPU core Instruction set optimized for controllers• Multiplication and division instructions• 16-bit arithmetic operations• Bit test branch instruction&#...

F2MC-8FX MB95140 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
F2MC-8FX MB95140
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-8FX CPU core Instruction set optimized for controllers
• Multiplication and division instructions
• 16-bit arithmetic operations
• Bit test branch instruction
• Bit manipulation instructions etc.
• Clock
• Main clock
• Main PLL clock
• Sub clock (for dual clock product)
• Sub PLL clock (for dual clock product)
• Timer
• 8/16-bit compound timer × 2 channels
• 8/16-bit PPG × 2 channels
• 16-bit PPG
• Timebase timer
• Watch prescaler (for dual clock product)
• LIN-UART
• Full duplex double buffer
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• UART/SIO
• Full duplex double buffer
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• External interrupt
• Interrupt by edge detection (rising, falling, or both edges can be selected)
• Can be used to recover from low-power consumption (standby) modes.
• 8/10-bit A/D converter 8-bit or 10-bit resolution can be selected.
• Low-power consumption (standby) mode
• Stop mode
• Sleep mode
• Watch mode (for dual clock product)
• Timebase timer mode
• I/O port
• The number of maximum ports
• Single clock product : 24 ports
• Dual clock product : 22 ports
• Port configuration
• General-purpose I/O ports (CMOS) : Single-clock product : 24 ports
: Dual-clock product : 22 ports
• Flash memory security function Protects the content of Flash memory (Flash memory device only)


Pinout

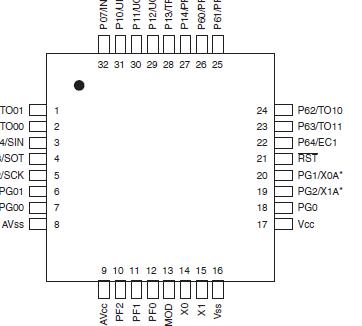

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage*1 VCC
AVCC		 VSS − 0.3 VSS + 4.0 V *2
Input voltage*1 VI VSS − 0.3 VSS + 4.0 V *3
Output voltage*1 VO VSS − 0.3 VSS + 4.0 V *3
Maximum clamp current ICLAMP − 2.0 +2.0 mA Applicable to pins*4
Total maximum clamp
current		 |ICLAMP| - 20 mA Applicable to pins*4
"L" level maximum
output current		 IOL1 - 15 mA Other than PF0 to PF2
IOL2 15 PF0 to PF2
"L" level average
current		 IOLAV1 - 4 mA Other than PF0 to PF2
Average output current =
operating current * operating ratio
(1 pin
IOLAV2 12 PF0 to PF2
Average output current =
operating current * operating ratio
(1 pin
"L" level total maximum
output current		 IOL - 100 mA
"L" level total average
output current		 IOLAV - 50 mA Total average output current =
operating current * operating ratio
(Total of pins)
"H" level maximum
output current		 IOH1 - -15 mA Other than PF0 to PF2
IOH2 -15 PF0 to PF2
"H" level average
current		 IOHAV1 - -4 mA Other than PF0 to PF2
Average output current =
operating current * operating ratio
(1 pin)
IOHAV2 -8 PF0 to PF2
Average output current =
operating current * operating ratio
(1 pin)
"H" level total maximum
output current		 IOH - -100 mA
"H" level total average
output current		 IOHAV - -50 mA Total average output current =
operating current * operating ratio
(Total of pins)



Description

The MB95140 series is general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions.
Note : F2MC is the abbreviation of FUJITSU Flexible Microcontroller.
