EM39LV088

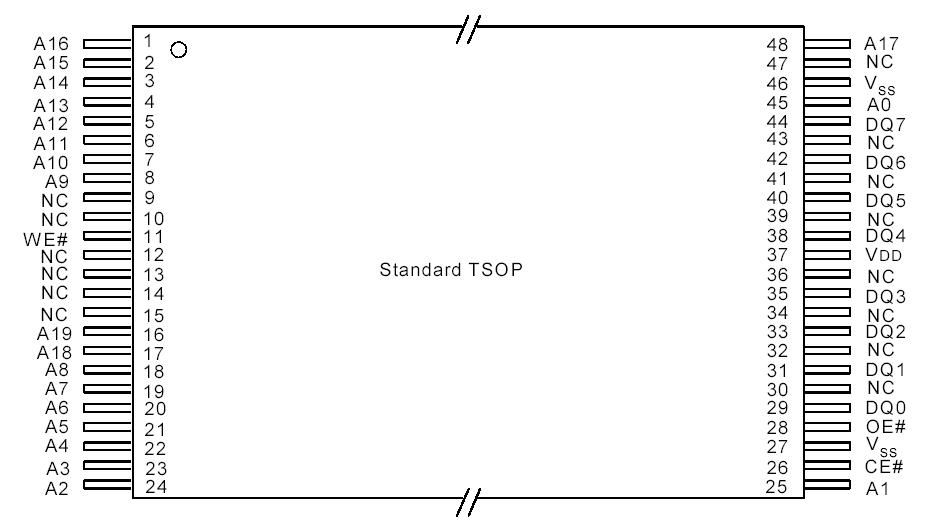

The EM39LV088 is an 8M bits Flash memory organized as 1M x 8 bits. The EM39LV088 uses 2.7-3.6V power supply for Program and Erase. Featuring high performance Flash memory technology, the EM39LV088 provides a typical Byte-Program time of 14 µsec and a typical Sector/Block-Erase time of 18 ms. The device uses Toggle Bit or Data# Polling to detect the completion of the Program or Erase operation. To protect against inadvertent write, the device has on-chip hardware and software data protection schemes. The device offers typical 100,000 cycles endurance and a greater than 10 years data retention. The EM39LV088 conforms to JEDEC standard pin outs for x16 memories. The EM39LV088 is offered in package types of 48-pin TSOP, and known good dice (KGD). For KGD, please contact ELAN Microelectronics or its representatives for detailed information (see Appendix at the bottom of this specification for Ordering Information).

The EM39LV088 devices are developed for applications that require memories with convenient and economical updating of program, data or configuration, e.g., DVD player, DVD R/W, WLAN, Router, Set-Top Box, etc.
