EDS1232AABB

Features: • 3.3V power supply• Clock frequency: 166MHz (max.)• Single pulsed /RAS• ×32 organization• 4 banks can operate simultaneously and independently• Burst read/write operation and burst read/single write operation capability• Programmable burst lengt...

product image

EDS1232AABB Picture
See larger image
SeekIC No. : 004333876 Detail

EDS1232AABB: Features: • 3.3V power supply• Clock frequency: 166MHz (max.)• Single pulsed /RAS• ×32 organization• 4 banks can operate simultaneously and independently• Burst r...

EDS1232AABB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EDS1232AABB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3V power supply
• Clock frequency: 166MHz (max.)
• Single pulsed /RAS
• ×32 organization
• 4 banks can operate simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• Programmable burst length (BL): 1, 2, 4, 8 and full page
• 2 variations of burst sequence
-Sequential (BL = 1, 2, 4, 8)
-Interleave (BL = 1, 2, 4, 8)
• Programmable /CAS latency (CL): 2, 3
• Byte control by DQM
• Refresh cycles: 4096 refresh cycles/64ms
• 2 variations of refresh
-Auto refresh
-Self refresh
• FBGA package is lead free solder (Sn-Ag-Cu)


Pinout

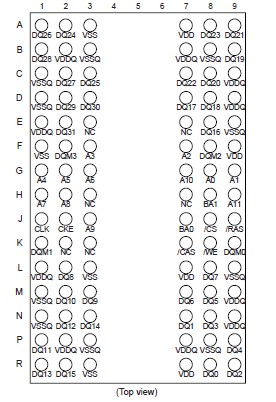

Connection Diagram


Specifications

Parameter

Symbol

Rating

Unit

Voltage on any pin relative to VSS
VT
0.5 to +4.6
V
Supply voltage relative to VSS
VDD, VDDQ
0.5 to +4.6
V
Short circuit output current
IOS
50
mA
Power dissipation
PD
1.0
W
Operating temperature
TA
0 to +70
°C

Storage temperature
Tstg
55 to +125
°C

Caution
Exposing the device to stress above those listed in Absolute Maximum Ratings could cause permanent damage. The device is not meant to be operated under conditions outside the limits described in the operational section of this specification. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.




Description

The EDS1232AA is a 128M bits SDRAM organized as 1,048,576 words × 32 bits × 4 banks. All inputs and outputs are synchronized with the positive edge of the clock.

They are packaged in 90-ball FBGA, 86-pin plastic TSOP (II).
