DS3884A

Features: Fast propagation delay (3 ns typ) 6-bit BTL transceiver Selective receiver glitch filtering (FR1FR3) Meets 1194.1 Standard on Backplane Transceiver Logic(BTL) Supports live insertion Glitch free power-up/down protection Typically less than 5 pF bus-port capacitance Low Bus-port voltage s...

product image

DS3884A Picture
See larger image
SeekIC No. : 004329072 Detail

DS3884A: Features: Fast propagation delay (3 ns typ) 6-bit BTL transceiver Selective receiver glitch filtering (FR1FR3) Meets 1194.1 Standard on Backplane Transceiver Logic(BTL) Supports live insertion Glitc...

DS3884A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS3884A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Fast propagation delay (3 ns typ)
6-bit BTL transceiver
Selective receiver glitch filtering (FR1FR3)
Meets 1194.1 Standard on Backplane Transceiver Logic(BTL)
Supports live insertion
Glitch free power-up/down protection
Typically less than 5 pF bus-port capacitance
Low Bus-port voltage swing (typically 1V) at 80 mA
TTL compatible driver and control inputs
Separate TTL I/O
Open collector bus-port outputs allow Wired-ORconnection
Controlled rise and fall time to reduce noise coupling toadjacent lines
Built in Bandgap reference with separate QV CC andQGND pins for precise receiver thresholds
Exceeds 2 kV ESD testing (Human Body Model)
Individual Bus-port ground pins
Product offered in PQFP package styles


Pinout

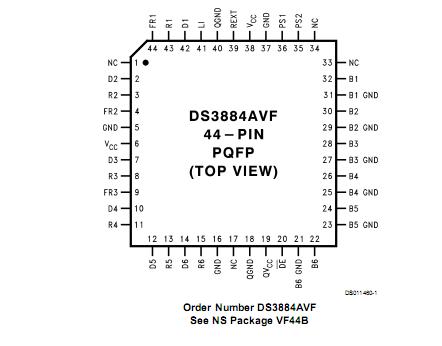

Connection Diagram


Specifications

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage .......................................................6.5V
Control Input Voltage ............................................6.5V
Driver Input and Receiver Output.......................... 5.5V
Receiver Input Current .....................................±15 mA
Bus Termination Voltage ........................................2.4V
Power Dissipation at .............................................25˚C
PQFP .....................................................................1.3W
Derate PQFP Package ................................11.1 mW/˚C
Storage Temperature Range............. −65˚C to +150˚C
Lead Temperature
(Soldering, 4 seconds):....................................... 260˚C


Description

The DS3884A is one in a series of transceivers designedspecifically for the implementation of high performance Fu-turebus+ and proprietary bus interfaces. The DS3884A is aBTL 6-bit Handshake Transceiver designed to conform toIEEE 1194.1 (Backplane Transceiver Logic-BTL) as speci-fied in the IEEE 896.2 Futurebus+ specification.
