DS3803

Features:

  Flexibly organized as 32k x 32, 64k x 16 or128k x 8bits
  10 years minimum data retention in theabsence of external power
  Nonvolatile circuitry transparent to andindependent from host system
  Automatic write protection circuitrysafeguards against data loss
  Separate control and data signals for eachSRAM allow byte, word or doublewordaccess
  Fast access time of 70 ns
  Full V_CC ± 10% operating range
  Employs popular JEDEC standard 72-positionSIMM connector
  Extremely thin design built using TSOP-package IC components

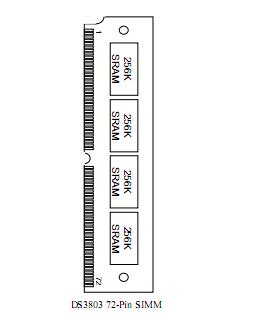

Pinout




Specifications

Voltage on Any Pin Relative to Ground ....................-0.3V to +7.0V
Operating Temperature................................................ 0 to 70
Storage Temperature ..............................................-40 to +85


Description

The DS3803 is a self-contained, 1,048,576-bit, nonvolatile static RAM which can be flexibly organizedas 32k x 32, 64k x 16 or 128k x 8. Built using four 32k x 8 SRAMs, four nonvolatile control ICs and fourlithium batteries, this nonvolatile memory contains all necessary control circuitry and lithium energysources to maintain data integrity in the absence of power for more than 10 years. The DS3803 employsthe popular JEDEC standard 72-position SIMM connection scheme and requires no additional circuitry.
