DS3862

If Military/Aerospace specified devices are required,pleasecontacttheNationalSemiconductorSalesOffice/Distributors for availability and specifications.
Supply Voltage                                                                                         6V
Control Input Voltage                                                                            5.5V
Driver Input and Receiver Output                                                          5.5V
Receiver Input and Driver Output                                                          5.5V
Power Dissipation                                                                          1400 mW
Storage Temperature Range                                               -65 to +150
Lead Temperature (Soldering, 4 seconds)                                           260

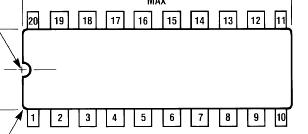

The DS3862 is an octal high speed schottky bus transceiver intended for use with terminated 120? impedance lines. It is specifically designed
to reduce noise in unbalanced trans-mission systems. The open collector drivers generate pre-cise trapezoidal waveforms with rise and fall
times of 9 ns (typical), which are relatively independent of capacitive load-ing conditions on the outputs.This reduces noise coupling to the
adjacent lines without any appreciable impact on the maximum data rate obtainable with high speed bus trans-ceivers.Inaddition,the receivers
use a low pass filterincon-junction with a high speed comparator, to further enhance the noise immunity. Tightly controlled threshold levels on
the receiver provide equal rejection to both negative and positive going noise pulses on the bus.

The DS3862 external termination is intended to be a 180 resistor fromthebusto5Vlogicsupply,togetherwitha390resistor from the bus to ground.The
bus can be terminated at one or both ends.
