DS05-20857-4E

Features: • Address specification is not necessary during command sequence• Single 3.0 V read, program and eraseMinimizes system level power requirements• Compatible with JEDEC-standard commandsUses same software commands as E2PROMs• Compatible with JEDEC-standard world-wid...

product image

DS05-20857-4E Picture
See larger image
SeekIC No. : 004328333 Detail

DS05-20857-4E: Features: • Address specification is not necessary during command sequence• Single 3.0 V read, program and eraseMinimizes system level power requirements• Compatible with JEDEC-sta...

DS05-20857-4E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS05-20857-4E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Address specification is not necessary during command sequence
• Single 3.0 V read, program and eraseMinimizes system level power requirements
• Compatible with JEDEC-standard commandsUses same software commands as E2PROMs
• Compatible with JEDEC-standard world-wide pinouts40-pin TSOP (I) (Package suffix: PTN-Normal Bend Type, PTR-Reversed Bend Type)48-ball FBGA (Package suffix: PBT)
• Minimum 100,000 program/erase cycles
• High performance80 ns maximum access time
• Sector erase architectureUniform sectors of 64K bytes eachAny combination of sectors can be concurrently erased.Also supports full chip erase
• Embedded EraseTM AlgorithmsAutomatically pre-programs and erases the chip or any sector
• Embedded programTM AlgorithmsAutomatically programs and verifies data at specified address
•Data Polling and Toggle Bit feature for detection of program or erase cycle completion
• Ready/Busy output (RY/BY)
Hardware method for detection of program or erase cycle completion
• Automatic sleep modeWhen addresses remain stable, automatically switches themselves to low power mode
•Low VCC write inhibit 2.5 V
• Hardware RESET pinResets internal state machine to the read mode
• Erase Suspend/ResumeSuspends the erase operation to allow a read data and/or program in another sector within the same device
• Sector protectionHardware method disables any combination of sectors from program or erase operations
• Sector Protection set function by Extended sector protect command
• Temporary sector unprotectionTemporary sector unprotection via the RESET pin


Pinout

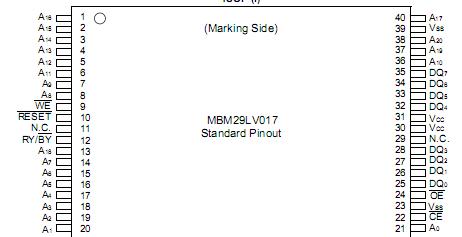

Connection Diagram


Specifications

Storage Temperature .............................................. 55°C to +125
Ambient Temperature with Power Applied ................. 40°C to +85
Voltage with respect to Ground All pins except A9, OE, and RESET  (Note 1) .....0.5 V to +VCC +0.5 V
VCC (Note 1) .................................................................0.5 V to +5.5 V
A9, OE, and RESET  (Note 2) ........................................0.5 V to +13.0 V
