Product Details

Description



Features:

• Single 3.0 V read, program and erase Minimizes system level power requirements
• Compatible with JEDEC-standard commands Uses same software commands as E2PROMs
• Compatible with JEDEC-standard world-wide pinouts
   48-pin TSOP (1) (Package suffix: PFTN-Normal Bend Type, PFTR-Reversed Bend Type)
   48-pin CSOP (Package suffix: PCV)
   48-ball FBGA (Package suffix: PBT)
• Minimum 100,000 program/erase cycles
• High performance 80 ns maximum access time
• Sector erase architecture One 8K word, two 4K words, one 16K word, and thirty-one 32K words sectors in word mode One 16K byte, two 8K bytes, one 32K byte, and thirty-one 64K bytes sectors in byte mode Any combination of sectors can be concurrently erased. Also supports full chip erase
• Boot Code Sector Architecture  T = Top sector B = Bottom sector
• Embedded EraseTM* Algorithms Automatically pre-programs and erases the chip or any sector
• Embedded programTM* Algorithms Automatically programs and verifies data at specified address
• Data Polling and Toggle Bit feature for detection of program or erase cycle completion
• Ready/Busy output (RY/BY) Hardware method for detection of program or erase cycle completion
• Automatic sleep mode When addresses remain stable, automatically switches themselves to low power mode
• Low VCC write inhibit 2.5 V
• Erase Suspend/Resume Suspends the erase operation to allow a read data and/or program in another sector within the same device
• Sector protection Hardware method disables any combination of sectors from program or erase operations
• Sector Protection set function by Extended sector Protect command
• Fast Programming Function by Extended Command
• Temporary sector unprotection Temporary sector unprotection via the RESET pin
• In accordance with CFI (Common Flash Memory Interface)

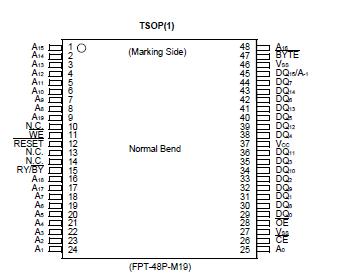

Pinout

Connection Diagram


Specifications

Parameter Symbol
Rating
Unit
Min
Max
Storage Temperature Tstg
-55
+125
Ambient Temperature with Power Applied TA
-40
+85
Voltage with Respect to Ground All pins except A9,
OE, RESET*1, *2		 VIN,VOUT
-0.5
VCC+0.5
V
A9, OE and RESET*1, *3 VIN
-2.0
+13.0
V
Power Supply Voltage*1 VCC
-0.5
+5.5
V
*1: Voltage is defined on the basis of VSS = GND = 0 V.
*2: Minimum DC voltage on input or l/O pins is 0.5 V. During voltage transitions, input or I/O pins may undershoot VSS to 2.0 V for periods of up to 20 ns. Maximum DC voltage on input or l/O pins is VCC +0.5 V. During voltage transitions, input or I/O pins may overshoot to VCC +2.0 V for periods of up to 20 ns.
*3: Minimum DC input voltage on A9, OE, and RESET pins is 0.5 V. During voltage transitions, A9, OE, and RESET pins may undershoot VSS to 2.0 V for periods of up to 20 ns. Voltage difference between input and supply voltage (VIN VCC) does not exceed +9.0 V. Maximum DC input voltage on A9, OE, and RESET pins are +13.0 V which may overshoot to +14.0 V for periods of up to 20 ns.

WARNING: Semiconductor devices can be permanently damaged by application of stress voltage,current,temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MBM29LV160T/B is a 16M-bit, 3.0 V-only Flash memory organized as 2M bytes of 8 bits each or 1M words of 16 bits each. The MBM29LV160T/B is offered in a 48-pin TSOP (1), 48-pin CSOP and 48-ball FBGA packages. The  device is designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.

The standard MBM29LV160T/B offers access times of 80 ns and 120 ns, allowing operation of high-speed  icroprocessors without wait states. To eliminate bus contention the device has separate chip enable (CE), write enable (WE), and output enable (OE) controls.

The MBM29LV160T/B is pin and command set compatible with JEDEC standard E2PROMs. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine which controls the erase and programming circuitry. Write cycles also internally latch addresses and data needed for the programming and erase operations. Reading data out of the device is similar to reading from 5.0 V and 12.0 V Flash or EPROM devices.

The MBM29LV160T/B is programmed by executing the program command sequence. This will invoke the Embedded Program Algorithm which is an internal algorithm that automatically times the program pulse widths and verifies proper cell margins. Typically, each sector can be programmed and verified in about 0.5 seconds.

Erase is accomplished by executing the erase command sequence. This will invoke the Embedded Erase Algorithm which is an internal algorithm that automatically preprograms the array if it is not already programmed before executing the erase operation. During erase, the MBM29LV160T/B automatically times the erase pulse widths and verifies proper cell margins.
