DS05-11422-3E

Features: • Asynchronous SRAM Interface• Fast Access Cycle Time : tAA = tCE = 65 ns Max• 8 words Page Access Capability : tPAA = 20 ns Max• Low Voltage Operating Condition : VDD = +2.6 V to +3.5 V• Wide Operating Temperature : TA = -30 °C to +85 °C• Byte Control...

product image

DS05-11422-3E Picture
See larger image
SeekIC No. : 004328329 Detail

DS05-11422-3E: Features: • Asynchronous SRAM Interface• Fast Access Cycle Time : tAA = tCE = 65 ns Max• 8 words Page Access Capability : tPAA = 20 ns Max• Low Voltage Operating Condition : ...

DS05-11422-3E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS05-11422-3E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Asynchronous SRAM Interface
• Fast Access Cycle Time : tAA = tCE = 65 ns Max
• 8 words Page Access Capability : tPAA = 20 ns Max
• Low Voltage Operating Condition : VDD = +2.6 V to +3.5 V
• Wide Operating Temperature : TA = -30 °C to +85 °C
• Byte Control by LB and UB
• Low Power Consumption : IDDA1 = 30 mA Max IDDS1 = 80 A Max
• Various Power Down mode : Sleep 4M-bit Partial 8M-bit Partial
• Shipping Form : Wafer/Chip, 71-ball plastic FBGA package


Pinout

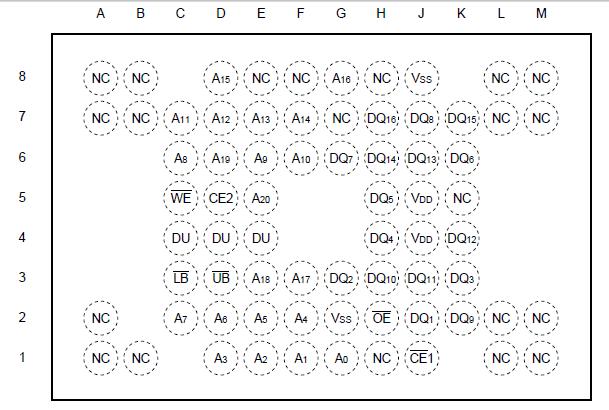

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Min
Max
Voltage of VDD Supply Relative to VSS
VDD
-0.5
+3.6
V
Voltage at Any Pin Relative to VSS
VIN, VOUT
−0.5
+3.6
V
Short Circuit Output Current
IOUT
-50
+50
mA
Storage Temperature
TSTG
-55
+125



Description

DS05-11422-3E is a CMOS Fast Cycle Random Access Memory (FCRAM*) with asynchronous Static Random Access Memory (SRAM) interface containing 33,554,432 storages accessible in a 16-bit format. MB82DP02183C is utilized using a FUJITSU advanced FCRAM core technology and improved integration in comparison to regular SRAM. DS05-11422-3E is suited for mobile applications such as Cellular Handset and PDA.
