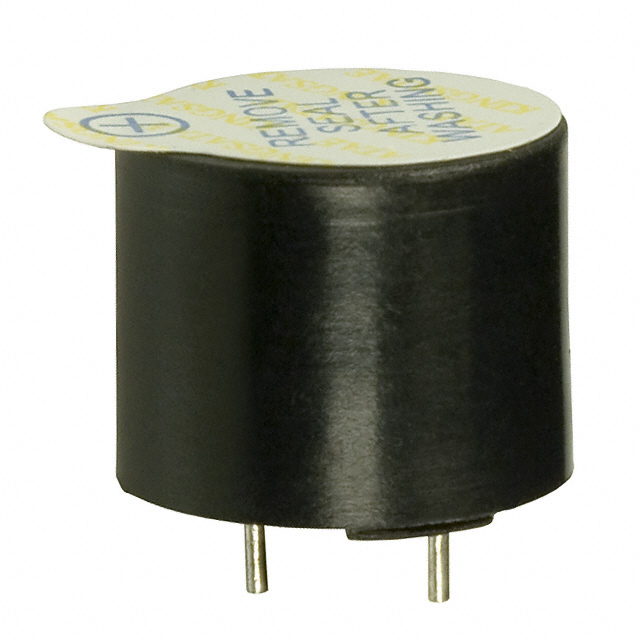

CEM-14R06CT

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Operating Mode: Continuous
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Series: CEM
Manufacturer: CUI Inc
Technology: Magnetic
Voltage - Rated: 1.5Vo-p
Washable: Yes
Size / Dimension: Circular - 12.00mm Dia x 10.50mm H
Sound Pressure Level: 85dB @ 1.5V, 10cm
Current - Supply: 40mA
Voltage Range: 1 ~ 1.7V
Frequency: 2.8kHz


Specifications

recommended circuits: click here

rated voltage: 1.5Vo-p

operating voltage: 1.0-1.7Vo-p

mean current: 40mA

coil resistance: 16Ω ±2.4

coil impedance: 34Ω

sound pressure level: 85dB

rated frequency: 2800 Hz ±200

operating temperature: -30 to +70°C

storage temperature: -40 to +85°C

diameter: 12.0 mm

depth: 10.0 mm

weight: 1.6 grams

termination: PC pins

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CEM-14R06CT
Vendor	CUI Inc
Category	Audio Products
Type	Magnetic Transducer, External Drive
Sound Pressure Level	85dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	2.8kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	1 ~ 1.7Vo-p
Voltage - Rated	1.5Vo-p
Current Rating	40mA
Size / Dimension	Circular - 12mm Dia x 10mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEM 14R06CT CEM14R06CT 102 1169 ND 1021169ND 102-1169
