Product Details

Description

Pinout

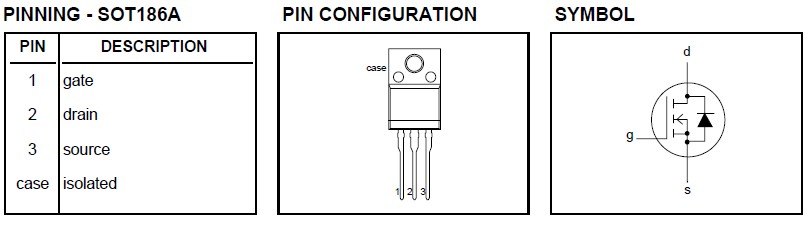

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_DS V_DGR ±V_GS I_D I_D I_DM P_tot T_stg T_j	Drain-source voltage Drain-gate voltage Gate-source voltage Drain current(DC) Drain current(DC) Drain current (pulse peak value) Total power dissipation Stroage temperature Junction Temperature	- R_GS=20 k - T_sp=25 T_sp=100 T_sp=25 T_sp=25 - -	- - - - - - - -55 -	60 60 30 21 13 84 30 150 150	V V V A A A W

Description

N-channel enhancement mode field-effect power transistor BUK474-60H in a plastic full-pack envelope.

BUK474-60H is intended for use in Automotive applications, Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.
