Product Details

Description

Pinout

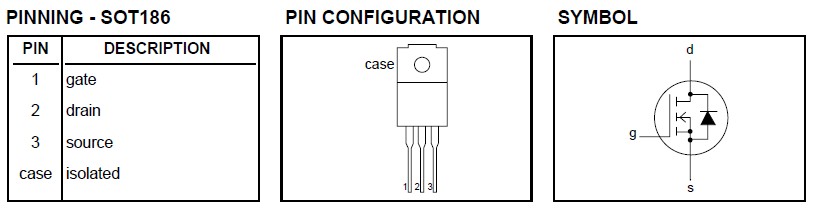

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MIN.		MIN.
V_DS V_DGR ±V_GS I_D I_D I_DM P_tot T_stg T_j	Drain-source voltage Drain-gate voltage Gate-source voltage Drain current (DC) Drain current (DC) Drain current (pulse peak value) Total power dissipation Storage temperature Junction Temperature	- R_GS=20k - T_hs = 25 °C T_hs = 100 °C T_hs = 25 °C T_hs = 25 °C - -	- - - - - - - -55 -	800 800 30		V V V A A A W
				-800A 1.4 0.9 5.6	-800B 1.2 0.75 4.8
				30 150 150

Description

N-channel enhancement mode field-effect power transistor BUK444-800A in a plastic full-pack envelope.

BUK444-800A is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.
