Product Details

Description

Pinout

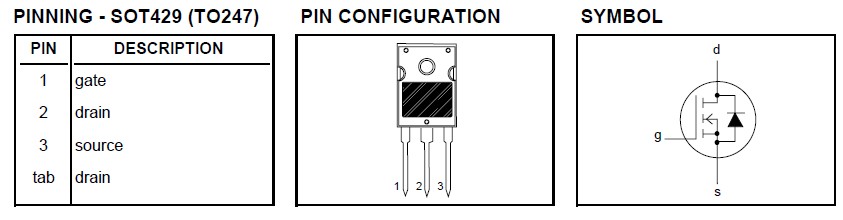

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.		UNIT
V_DS V_DGR ±V_GS I_D I_D I_DM P_tot T_stg T_j	Drain-source voltage Drain-gate voltage Gate-source voltage Drain current (DC) Drain current (DC) Drain current (pulse peak value) Total power dissipation Storage temperature Junction temperature	- R_GS=20k - T_mb-25 T_mb=100 T_mb=25 T_mb=25 - -	- - - - - - - -55 -	800 800 30		V V V A A A W
				-800A 7.6 4.8 30	-800B 6.6 4.1 26
				220 150 150

Description

N-channel enhancement mode field-effect power transistor BUK438W-800A in a plastic envelope.
BUK438W-800A is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.
