Product Details

Description

Pinout

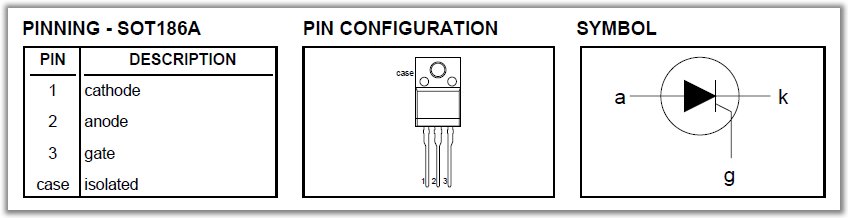

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.			UNIT
V_DRM, V_RRM I_T(AV) I_T(RMS) I_TSM I²t dI_T/dt I_GM V_GM V_RGM P_GM P_G(AV) T_stg T_j	Repetitive peak off-state voltages Average on-state current RMS on-state current Non-repetitive peak on-state current I²t for fusing Repetitive rate of rise of on-state current after triggering Peak gate current Peak gate voltage Peak reverse gate voltage Peak gate power Average gate power Storage temperature Operating junction temperature	half sine wave; T_hs 79 °C all conduction angles half sine wave; T_j = 25 °C prior to surge t = 10 ms t = 8.3 ms t = 10 ms ITM = 10 A; IG = 50 mA; dIG/dt = 50 mA/s over any 20 ms period	- - - - - - - - - - - - -40 -	-500R 500¹	-600R 600¹	-800R 800	V A A A A A²S A/S A V V W W
				5 8 65 71 21 50 2 5 5 5 0.5 150 125

Description

Glass passivated thyristors BT300X in a full pack, plastic envelope, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.
