BT300B

PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDRM, VRRMIT(AV)IT(RMS)ITSMI2tdIT/dtIGMVGMVRGMPGMPG(AV)TstgTj Repetitive peak off-state voltagesAverage on-state currentRMS on-state currentNon-repetitive peak on-state currentI2t for fusingRepetitive rate of rise ...

product image

BT300B Picture
See larger image
SeekIC No. : 004302606 Detail

BT300B: PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDRM, VRRMIT(AV)IT(RMS)ITSMI2tdIT/dtIGMVGMVRGMPGMPG(AV)TstgTj Repetitive peak off-state voltagesAverage on-state c...

BT300B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BT300B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

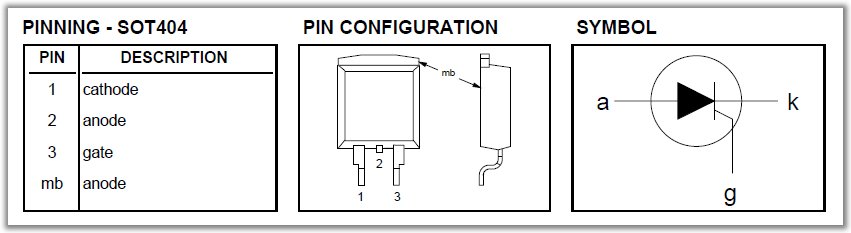

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT
VDRM, VRRM
IT(AV)
IT(RMS)
ITSM
I2t
dIT/dt
IGM
VGM
VRGM
PGM
PG(AV)
Tstg
Tj		 Repetitive peak off-state voltages
Average on-state current
RMS on-state current
Non-repetitive peak on-state current
I2t for fusing
Repetitive rate of rise of on-state current after triggering
Peak gate current
Peak gate voltage
Peak reverse gate voltage
Peak gate power
Average gate power
Storage temperature
Operating junction temperature		 half sine wave; Tmb 111 °C
all conduction angles
half sine wave; Tj = 25 °C prior to surge
t = 10 ms
t = 8.3 ms
t = 10 ms
ITM = 10 A; IG = 50 mA;
dIG/dt = 50 mA/s


over any 20 ms period

-
-
-
-
-
-
-
-
-
-
-
-
-40
-
-500R
5001
-600R
6001
-800R
800
V
A
A
A
A
A2S
A/S
A
V
V
W
W

5
8
65
71
21
50
2
5
5
5
0.5
150
125



Description

Glasspassivatedthyristorsinaplastic BT300B envelope suitable for surface mounting, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.
