Product Details

Description



Features:

* Emitter-ballasting resistors for an optimum temperature profile
* Excellent reliability
* Withstands full load mismatch.


Pinout

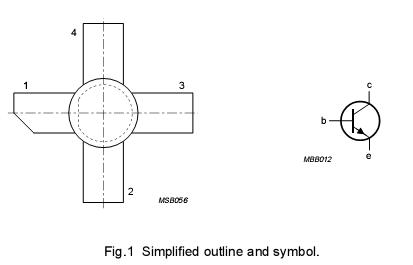

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 36 V
VCES collector-emitter voltage open base  16 V
VEBO emitter-base voltage open collector 3 V
IC,IC(AV) collector current DC or average value 6 A
ICM collector current peak value f > 1 MHz 18 A
Ptot total power dissipation RF operation;f > 1 MHz;
Tmb =25 °C		 100 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar epitaxial transistor BLW30 encapsulated in a 4-lead 3/8 inch SOT120 capstan envelope with a ceramic cap. BLW30 is designed for  common emitter, class-B operation mobile VHF transmitters with a supply voltage of 12.5 V. All leads are isolated from the stud.
