Configuration : | Dual | Transistor Polarity : | N-Channel |
Frequency : | 225 MHz | Gain : | 13.5 dB |
Output Power : | 300 W | Drain-Source Breakdown Voltage : | 65 V |
Continuous Drain Current : | 25 A | Gate-Source Breakdown Voltage : | +/- 20 V |
Maximum Operating Temperature : | + 150 C | Package / Case : | SOT-262 A1 |
Packaging : | Bulk |
SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
VDS | drain-source voltage | 65 | V | ||
VGS | gate-source voltage | ±20 | V | ||
ID | DC drain current | 25 | A | ||
Ptot | total power dissipation | up to Tmb = 25 C; total device;both sections equally loaded | 500 | W | |
Tstg | storage temperature | -65 | 150 | C | |
Tj | junction temperature | 200 | C | ||

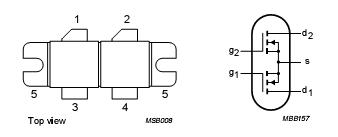

The BLF368 is a type of VHF push-pull power MOS transistor,which is designed for broadcast transmitter applications in the VHF frequency range. The transistor is encapsulated in a 4-lead SOT262A1 balanced flange package, with two ceramic caps. The mounting flange offers the common source combination for the transistors.
Features of the BLF368 are:(1)high power gain;(2)easy power control;(3)good thermal stability;(4)gold metallization ensures excellent reliability.
The limiting values and characteristics(Tj = 25 °C unless otherwise specified) of the BLF368 can be summarized as:(1):drain-source voltage is 65 V;(2): gate-source voltage is±20 V;(3):drain current (DC) is 25 A;(4):total power diss ipation is 500W when Tmb is 25°C or less than 25°C,both sections equally loaded; (5):storage temperature range s from-65°C to 150 °C;(6):junction temperature is 200°C.Characteristics:(1):drain-source breakdown voltage is 65V min when VGS is 0 and ID is 100 mA;(2):drain-source leakage current is 5mA when VGS is 0 and VDS is 32 V; (3):gate-source leakage current is 1uA when VGS is±20 V and VDS is 0;(4):gate-source threshold voltage is 2V min and 4.5V max when ID is 100 mA and VDS is 10 V;(5):gate-source voltage difference of both transistor sections is 10 0mV when ID is 100 mA and VDS is 10 V;(6):forward transconductance is 5S min and 7.5S typ when IDis 8 A and VDS is 10 V;(7)forward transconductance ratio of both transistor sections is 0.9 min and 1.1 max when
ID is 8 A and VDS is 10 V.etc.
