Am27C256

DISTINCTIVE CHARACTERISTICS
 Fast access time
- 55 ns
 Low power consumption
- 20 mA typical CMOS standby current
 JEDEC-approved pinout
  Single +5 V power supply
  ±10% power supply tolerance available
 100% Flashrite programming
- Typical programming time of 4 seconds

 Latch-up protected to 100 mA from 1 V to
VCC + 1 V
  High noise immunity
 Versatile features for simple interfacing
- Both CMOS and TTL input/output
compatibility
- Two line control functions

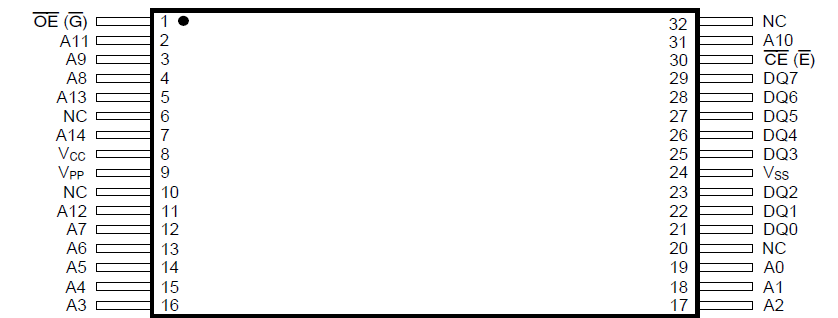

 Standard 28-pin DIP, PDIP, 32-pin TSOP and
PLCC packages

  The Am27C256 is a 256K-bit ultraviolet erasable programmable read-only memory. It is organized as 32K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. Products are available in windowed ceramic DIP packages as well as plastic one time programmable (OTP) PDIP, TSOP, and PLCC packages.

  Typically, any byte can be accessed in less than 55 ns, allowing operation with high-performance microprocessors without any WAIT states. The Am27C256 offers separate Output Enable (OE) and Chip Enable (CE)

controls, thus eliminating bus contention in a multiple bus microprocessor system.

AMD's CMOS process technology provides high speed, low power, and high noise immunity. Typical power consumption is only 80 mW in active mode, and 100 mW in standby mode.

  All signals are TTL levels, including programming signals. Bit locations may be programmed singly, in blocks, or at random. The Am27C256 supports AMD's Flashrite programming algorithm (100 ms pulses) resulting in typical programming time of 4 seconds.
