Features: .Organization: 262,144 words × 32 or 36 bits. NTD(TM)architecture for efficient bus operation.Fast clock speeds to 166 MHz. Fast clock to data access: 3.5/4.0 ns. Fast OE access time: 3.5/4.0 ns.Fully synchronous operation.Common data inputs and data outputs.Asynchronous output enable co...

See larger image

SeekIC No. : 004288528 Detail

AS7C33256NTD32A: Features: .Organization: 262,144 words × 32 or 36 bits. NTD(TM)architecture for efficient bus operation.Fast clock speeds to 166 MHz. Fast clock to data access: 3.5/4.0 ns. Fast OE access time: 3.5/...

AS7C33256NTD32A Data Sheet

Get Latest Price

Part Number:: AS7C33256NTD32A
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

. Organization: 262,144 words × 32 or 36 bits
. NTD^(TM) architecture for efficient bus operation
. Fast clock speeds to 166 MHz
. Fast clock to data access: 3.5/4.0 ns
. Fast OE access time: 3.5/4.0 ns
. Fully synchronous operation
. Common data inputs and data outputs
. Asynchronous output enable control
. Available in 100-pin TQFP
. Byte write enables
. Clock enable for operation hold
. Multiple chip enables for easy expansion
. 3.3 core power supply
. 2.5V or 3.3V I/O operation with separate V_DDQ. Self-timed write cycles
. Interleaved or linear burst modes
. Snooze mode for standby operation

Pinout

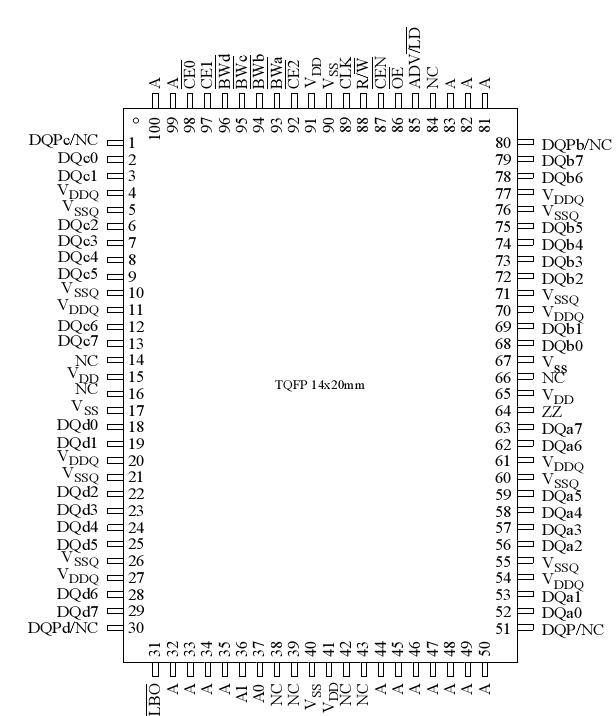

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GND	V_DD , V_DDQ	0.5	+4.6	V
Input voltage relative to GND (input pins)	V_IN	0.5	V_DD + 0.5	V
Input voltage relative to GND (I/O pins)	V_IN	0.5	V_DDQ+ 0.5	V
Power dissipation	P_D		1.8	W
DC output current	I_OUT		50	mA
Storage temperature (plastic)	T_stg	65	+150	oC
Temperature under bias (Junction)	T_bias	65	+150	oC
