AS7C1024

Features:

* AS7C1024 (5V version)
* AS7C31024 (3.3V version)
* Industrial and commercial temperatures
* Organization: 131,072 words * 8 bits
*High speed
  - 10/12/15/20 ns address access time
  - 5/6/8/10 ns output enable access time
* Low power consumption: ACTIVE
   - 825 mW (c) / max @ 12 ns
   - 360 mW (AS7C31024) / max @ 12 ns
* Low power consumption: STANDBY
   - 55 mW (AS7C1024) / max CMOS
   - 36 mW (AS7C31024) / max CMOS
* 2.0V data retention
* Easy memory expansion with CE1, CE2, OE inputs
* TTL/LVTTL-compatible, three-state I/O
* 32-pin JEDEC standard packages
   - 300 mil SOJ
   - 400 mil SOJ
   -8 * 20mm TSOP I
   - 8 * 13.4 mm sTSOP I
* ESD protection 2000 volts
* Latch-up current 200 mA


Pinout

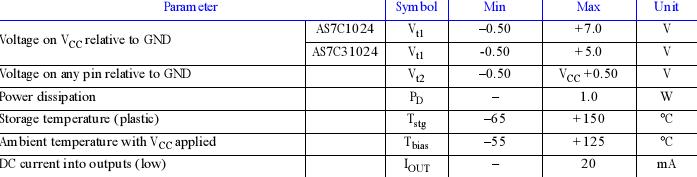

Specifications




Description

The AS7C1024 and AS7C31024 are high performance CMOS 1,048,576-bit Static Random Access Memory (SRAM)devices organized as 131,072 words × 8 bits. It is designed for memory applications where fast data access, low power, and simple interfacing are desired.

Equal address access and cycle times (t_AA, t_RC, t_WC) of 10/12/15/20 ns with output enable access times (t_OE) of 5/6/8/10 ns of AS7C1024 are ideal for high performance applications. Active high and low chip enables (CE1, CE2) permit easy memory expansion with multiple-bank systems.

When CE1 is high or CE2 is low the devices enter standby mode. If inputs are still toggling, the device will consume ISB power.If the bus is static, then full standby power is reached (ISB1 or ISB2). For example, the AS7C31024  is guaranteed not to exceed 0.33mW under nominal full standby conditions. All devices in this family will retain data when VCC is reduced as low as 2.0V.

A write cycle of AS7C1024 is accomplished by asserting write enable (WE) and both chip enables (CE1, CE2). Data on the input pins I/O0- I/O7 is written on the rising edge of WE (write cycle 1) or the active-to-inactive edge of CE1 or CE2 (write cycle 2). To avoid bus contention, external devices should drive I/O pins only after outputs have been disabled with output enable (OE) or write enable (WE).

A read cycle of AS7C1024 is accomplished by asserting output enable (OE) and both chip enables (CE1, CE2), with write enable(WE) high.The chips drive I/O pins with the data word referenced by the input address. When either chip enable is inactive, output enable is inactive, or write enable is active, output drivers stay in high-impedance mode.
