Product Details

Description

Features:

. Organization: 262,144 words × 18 bits
. NTD^(TM) architecture for efficient bus operation
. Fast clock speeds to 200 MHz
. Fast clock to data access: 3.0/3.5/4.0 ns
. Fast OE access time: 3.0/3.5/4.0 ns
. Fully synchronous operation
. Asynchronous output enable control
. Available in 100-pin TQFP package
. Byte write enables
. Clock enable for operation hold
. Multiple chip enables for easy expansion
. 3.3V core power supply
. 2.5V or 3.3V I/O operation with separate V_DDQ
. Self-timed write cycles
. Interleaved or linear burst modes
. Snooze mode for standby operation

Pinout

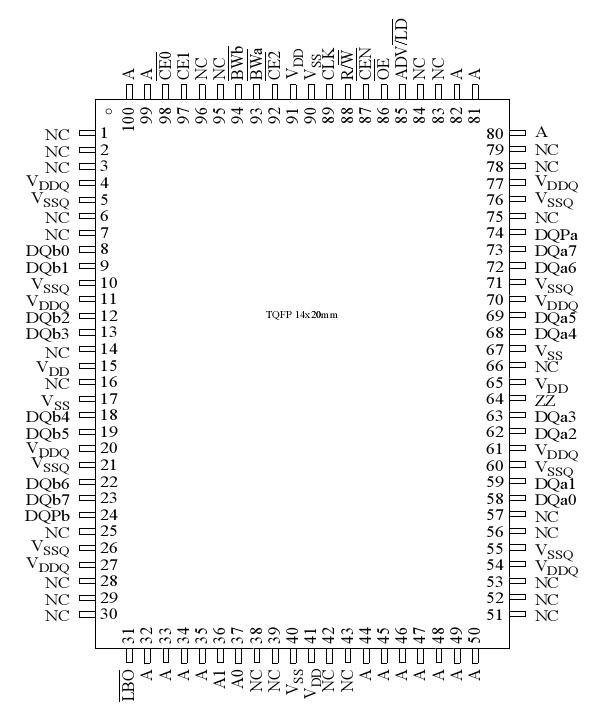

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GND	V_DD , V_DDQ	0.5	+4.6	V
Input voltage relative to GND (input pins)	V_IN	0.5	V_DD + 0.5	V
Input voltage relative to GND (I/O pins)	V_IN	0.5	V_DDQ+ 0.5	V
Power dissipation	P_D		1.8	W
Short circuit output current	I_OUT		20	mA
Storage temperature	T_stg	65	+150	oC
Temperature under bias	T_bias	65	+135	oC
