Product Details

Description

Features:

•Organization: 262,144 words × 18 bits
•Fast clock to data access: 6.5/7.5/8.0/10.0 ns
•Fast OE
access time: 3.5/4.0 ns
•Fully synchronous flow through operation
•Asynchronous output enable control
•Availalbe in 100-pin TQFP package
•Individual byte write and Global write
•Multiple chip enables for easy expansion
•3.3V core power supply
•2.5V or 3.3V I/O operation with separate V
DDQ
•Linear or interleaved burst control
•Snooze mode for reduced power standby
•Common data inputs and data outputs

Pinout

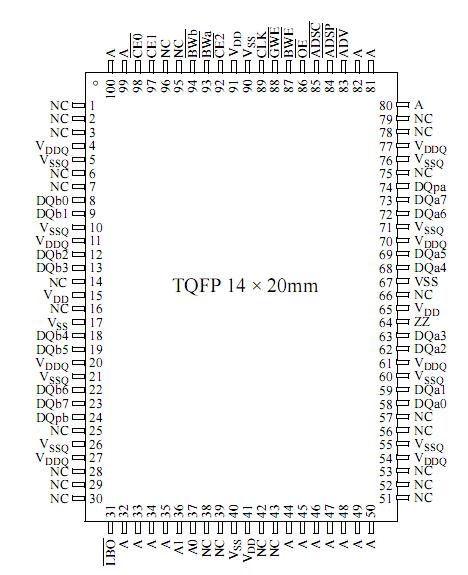

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GND	V_DD, V_DDQ	0.5	+4.6	V
Input voltage relative to GND (input pins)	V_IN	0.5	VDD + 0.5	V
Input voltage relative to GND (I/O pins)	V_IN	0.5	VDDQ+ 0.5	V
Power dissipation	P_D		1.8	W
DC output current	I_OUT		50	mA
Storage temperature (plastic)	T_stg	65	+150	°C
Temperature under bias	T_bias	65	+135	°C
