AS7C33128NTF36B

Features:

• Organization: 131,072 words × 32 or 36 bits
•NTD™architecture for efficient bus operation
• Fast clock to data access: 7.5/8.0/10.0 ns
•Fast OE access time: 3.5/4.0 ns
• Fully synchronous operation
• Flow-through mode
• Asynchronous output enable control
• Available in 100-pin TQFP package
• Byte write enables
• C• Multiple chip enables for easy expansion
• 3.3V core power supply
• 2.5V or 3.3V I/O operation with separate VDDQ
• Self-timed write cycles
• Interleaved or linear burst modes
• Snooze mode for standby operation

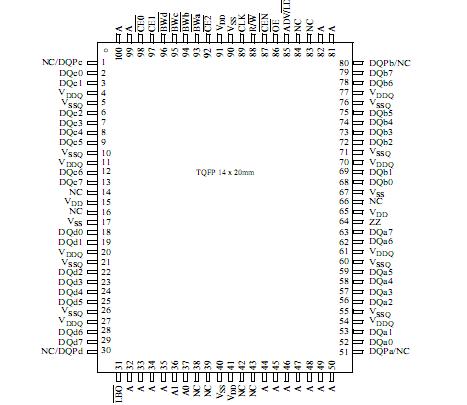

Pinout




Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GND	VDD, VDDQ	0.5	+4.6	V
Input voltage relative to GND (input pins)	VIN	0.5	VDD + 0.5	V
Input voltage relative to GND (I/O pins)	VIN	0.5	VDDQ + 0.5	V
Power dissipation	Pd		1.8	W
Short circuit output current	IOUT		20	mA
Storage temperature	Tstg	65	+150
Temperature under bias	Tbias	65	+135

Description

The AS7C33128NTF32B/36B family is a high performance CMOS 4 Mbit synchronous Static Random Access Memory (SRAM) organized as 131,072 words × 32 or 36 bits and incorporates a LATE Write.

This variation of the 4Mb+ synchronous SRAM uses the No Turnaround Delay (NTD™)AS7C33128NTF36B  architecture, featuring an enhanced write operation that improves bandwidth over flowthrough burst devices. In a normal flowthrough burst device, the write data, command, and address are all applied to the device on the same clock edge. If a read command follows this write command, the system of AS7C33128NTF36B must wait for one dead cycle for valid data to become available. This dead cycle of AS7C33128NTF36B can significantly reduce overall bandwidth for applications requiring random access or read-modify write operations
