Features: • Pin compatible with AS7C3256
• Industrial and commercial temperature options
• Organization: 32,768 words * 8 bits
• High speed
-10/12/15/20 ns address access time
-5, 6, 7, 8 ns output enable access time
• Very low power consumption: ACTIVE
-180mW max @ 10 ns
• Very low power consumption: STANDBY
-7.2 mW max CMOS I/O
• Easy memory expansion with CE andOE inputs
• TTL-compatible, three-state I/O
• 28-pin JEDEC standard packages
-300 mil SOJ-8 * 13.4 mm TSOP 1
• ESD protection 2000 volts

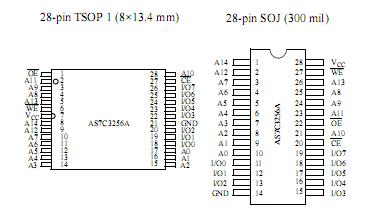

• Latch-up current 200 mAPinout
Specifications
| Parameter |
Symbol |
Min |
Max |
Unit |
| Voltage on VCC relative to GND |
Vt1 |
0.5 |
+5.0 |
V |
| Voltage on any pin relative to GND |
Vt2 |
0.5 |
VCC + 0.5 |
V |
| Power dissipation |
PD |
|
1.0 |
W |
| Storage temperature (plastic) |
Tstg |
65 |
+150 |
|
| Ambient temperature with VCC applied |
Tbias |
55 |
+125 |
|
| DC current into outputs (low) |
IOUT |
|
20 |
mA |
DescriptionThe AS7C3256A is a 3.3V high-performance CMOS 262,144-bit Static Random-Access Memory (SRAM) device organized as 32,768 words * 8 bits. It is designed for memory applications re quiring fast data access at low voltage, including PentiumTM, PowerPCTM, and portable computing. A lliance's advanced circuit design and process techniques permit 3.3V operation without sacrificing performance or operating margins.
AS7C3256A-10JC enters standby mode when CE is high. CMOS standby mode consumes 7.2 mW. Normal operation offers 75% power reduction after initial access, resulting in significant power savings during CPU idle, suspend, and stretch mode.
Equal address access and cycle times (tAA, tRC, tWC) of 10/12/15/20 ns with output enable access times (t OE ) of 5, 6, 7, 8 ns are ideal for high-performance applications. The chip enable (CE input permits easy memory expansion with multiple-bankmemory organizations.
A write cycle of AS7C3256A-10JC is accomplished by assertingchip enable (CE and write enable (WE ) LOW. Data on the input pins I/O0-I/O7 is written on the rising edge of WE (write cycle 1) or CE (write cycle 2). To avoid bus contention, external devices should drive I/O pins only after outputs have been disabled with output enable (OE ) or write enable WE).
A read cycle of AS7C3256A-10JC is accomplished by asserting chip enable (CE ) and output enable (OE ) LOW, with write enable WE high. The chip drives I/O pins with the data word referenced by the input address. When chip enable or output enable is high, or write enable is low, output drivers stay in high-impedance mode.All chip inputs and outputs are TTL-compatible. Operation of AS7C3256A-10JC is from a single 3.3 ±0.3V supply. The AS7C3256A is packaged in high volume industry standard packages.
AS7C3256A-10JC Data Sheet
