AS7C25512PFD36A

Features: * Organization: 524,288 words × 32 or 36 bits* Fast clock speeds to 166 MHz * Fast clock to data access: 3.5/3.8 ns* Fast OE access time: 3.5/3.8 ns* Fully synchronous register-to-register operation* Double-cycle deselect* Asynchronous output enable control* Available in 100-pin TQFP pac...

product image

AS7C25512PFD36A Picture
See larger image
SeekIC No. : 004288464 Detail

AS7C25512PFD36A: Features: * Organization: 524,288 words × 32 or 36 bits* Fast clock speeds to 166 MHz * Fast clock to data access: 3.5/3.8 ns* Fast OE access time: 3.5/3.8 ns* Fully synchronous register-to-register...

AS7C25512PFD36A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS7C25512PFD36A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Organization: 524,288 words × 32 or 36 bits
* Fast clock speeds to 166 MHz
* Fast clock to data access: 3.5/3.8 ns
* Fast OE access time: 3.5/3.8 ns
* Fully synchronous register-to-register operation
* Double-cycle deselect
* Asynchronous output enable control
* Available in 100-pin TQFP package
* Individual byte write and global write
* Multiple chip enables for easy expansion
* 2.5V core power supply
* Linear or interleaved burst control
* Snooze mode for reduced power-standby
* Common data inputs and data outputs


Pinout

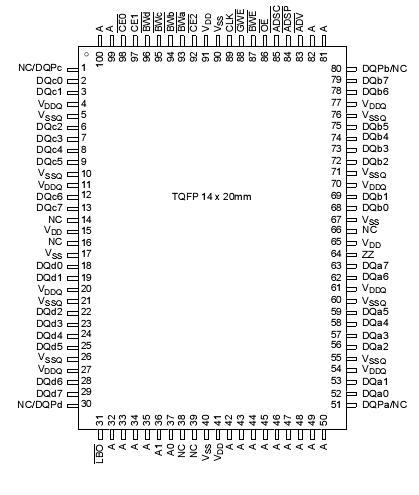

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Power supply voltage relative to GND VDD , VDDQ 0.5 +3.6 V
Input voltage relative to GND (input pins) VIN 0.5 VDD + 0.5
 V

Input voltage relative to GND (I/O pins)		 VIN 0.5 VDDQ + 0.5 V
Power dissipation Pd 1.8 W

Short circuit output current		 IOUT 20 mA
Storage temperature Tstg 65 +150
Temperature under bias Tbias 65
+135
