AS7C25512NTD36A

Features: • Organization: 524,288 words × 32 or 36 bits• NTD™architecture for efficient bus operation• Fast clock speeds to 166 MHz• Fast clock to data access: 3.5/3.8 ns• Fast OE access time: 3.5/3.8 ns• Fully synchronous operation• Asynchronous out...

product image

AS7C25512NTD36A Picture
See larger image
SeekIC No. : 004288460 Detail

AS7C25512NTD36A: Features: • Organization: 524,288 words × 32 or 36 bits• NTD™architecture for efficient bus operation• Fast clock speeds to 166 MHz• Fast clock to data access: 3.5/3.8 ...

AS7C25512NTD36A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS7C25512NTD36A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Organization: 524,288 words × 32 or 36 bits
• NTD™architecture for efficient bus operation
• Fast clock speeds to 166 MHz
• Fast clock to data access: 3.5/3.8 ns
• Fast OE access time: 3.5/3.8 ns
• Fully synchronous operation
• Asynchronous output enable control
• Available in 100-pin TQFP package
• Individual byte write and global write
• Clock enable for operation hold
• Multiple chip enables for easy expansion
• 2.5V core power supply
• Self-timed write cycles
• Interleaved or linear burst modes
• Snooze mode for standby operatio




Pinout

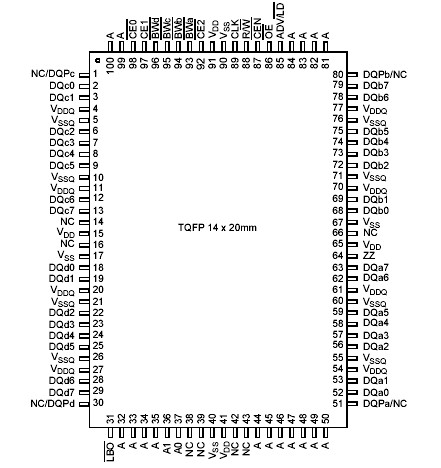

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Power supply voltage relative to GND
VDD, VDDQ
0.3
+3.6
V
Input voltage relative to GND (inputpins)
VIN
0.3
VDD + 0.3
V
Input voltage relative to GND (I/O pins)
VIN
0.3
VDDQ + 0.3
V
Power dissipation
PD
1.8
W
DC output current
IOUT
50
mA
Storage temperature
Tstg
65
+150
Temperature under bias (junction)
Tbias
65
+150
