AS7C251MNTF32A

Features: • Organization: 1,048,576 words × 32 or 36 bits• NTD™architecture for efficient bus operation• Fast clock to data access: 7.5/8.5/10 ns• FastOE access time: 3.5/4.0 ns• Fully synchronous operation• Flow-through mode• Asynchronous output ena...

product image

AS7C251MNTF32A Picture
See larger image
SeekIC No. : 004288443 Detail

AS7C251MNTF32A: Features: • Organization: 1,048,576 words × 32 or 36 bits• NTD™architecture for efficient bus operation• Fast clock to data access: 7.5/8.5/10 ns• FastOE access time: 3...

AS7C251MNTF32A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS7C251MNTF32A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Organization: 1,048,576 words × 32 or 36 bits
• NTD™architecture for efficient bus operation
• Fast clock to data access: 7.5/8.5/10 ns
• Fast OE access time: 3.5/4.0 ns
• Fully synchronous operation
• Flow-through mode
• Asynchronous output enable control
• Available in 100-pin TQFP package
• Byte write enables
• Clock enable for operation hold
• Multiple chip enables for easy expansion
• 2.5V core power supply
• Self-timed write cycles
• Interleaved or linear burst modes
• Snooze mode for standby operation


Pinout

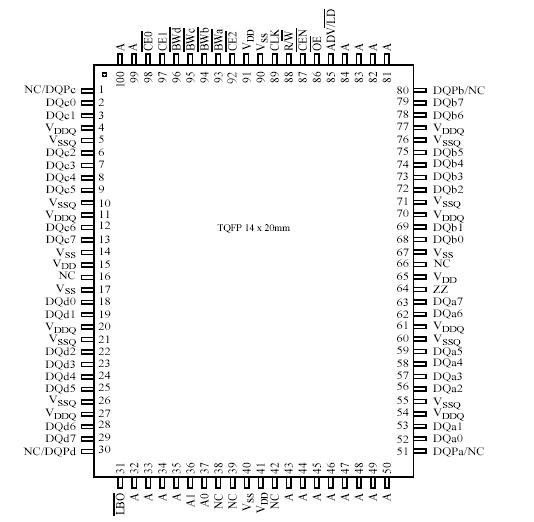

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Power supply voltage relative to GND

Input voltage relative to GND (input pins)

Input voltage relative to GND (I/O pins)

Power dissipation

Short circuit output current

Storage temperature

Temperature under bias
VDD, VDDQ

VIN

VIN

Pd

IOUT

Tstg

Tbias
0.5

0.5

0.5





65

65
+4.6

VDD + 0.5

VDDQ + 0.5

1.8

20

+150

+135
V

V

V

W

mA

°C

°C

Stresses greater than those listed under "Absolute maximum ratings" may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions may affect reliability.
