AS7C251MNTF18A

Features:

• Organization: 1,048,576 words × 18 bits
• NTD™ architecture for efficient bus operation
• Fast clock to data access: 7.5/8.5/10 ns
• Fast OE access time: 3.5/4.0 ns
• Fully synchronous operation
• Flow-through mode
• Asynchronous output enable control

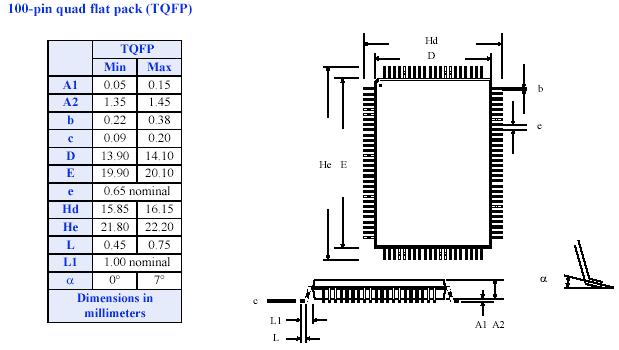

• Available in 100-pin TQFP package
• Individual byte write and global write
• Clock enable for operation hold
• Multiple chip enables for easy expansion
• 2.5V core power supply
• Self-timed write cycles
• Interleaved or linear burst modes
• Snooze mode for standby operation


Pinout




Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GND	VDD, VDDQ	0.3	+3.6	V
Input voltage relative to GND (input pins)	VIN	0.3	VDD + 0.3	V
Input voltage relative to GND (I/O pins)	VIN	0.3	VDDQ + 0.3	V
Power dissipation	PD		1.8	W
DC output current	IOUT		50	mA
Storage temperature (plastic)	Tstg	65	+150
Temperature under bias (Junction)	Tbias	65	+135

Description

The AS7C251MNTF18A family is a high performance CMOS 16 Mbit synchronous Static Random Access Memory (SRAM) organized as 1,048,576 words × 18 bits and incorporates a LATE Write.

This variation of the 16Mb+ synchronous SRAM uses the No Turnaround Delay (NTD™) AS7C251MNTF18A architecture, featuring an enhanced write operation that improves bandwidth over flowthrough burst devices. In a normal flowthrough burst device, the write data, command, and address of AS7C251MNTF18A are all applied to the device on the same clock edge. If a read command follows this write command, the system must wait for one 'dead' cycle for valid data to become available. This dead cycle of AS7C251MNTF18A can significantly reduce overall bandwidth for applications requiring random access or read-modify-write operations.

NTD™ AS7C251MNTF18A devices use the memory bus more efficiently by introducing a write latency which matches the one-cycle flowthrough read latency. Write data is applied one cycle after the write command and address, allowing the read pipeline to clear. With NTD™, write and read operations of AS7C251MNTF18A can be used in any order without producing dead bus cycle.

Assert R/W low to perform write cycles. Byte write enable controls write access to specific bytes, or can be tied low for full 18 bit writes. Write of AS7C251MNTF18A enable signals, along with the write address, are registered on a rising edge of the clock. Write data is applied to the device one clock cycle later. Unlike some asynchronous SRAMs, output of AS7C251MNTF18A enable OE does not need to be toggled for write operations; AS7C251MNTF18A can be tied low for normal operations. Outputs go to a high impedance state when the device is de-selected by any of the three chip enable inputs.

Use the ADV (burst advance)AS7C251MNTF18A  input to perform burst read, write and deselect operations. When ADV is high, external addresses, chip select, R/W pins are ignored, and internal address counters increment in the count sequence specified by the LBO control. Any device operations, including burst, can be stalled using the CEN=1, the clock enable input.

The AS7C251MNTF18A operates with a 2.5V ± 5% power supply for the device core (V_DD). DQ circuits use a separate power supply (V_DDQ). These devices are available in a 100-pin TQFP package.
