AM1214-250

Transistors Bipolar (BJT)

product image

AM1214-250 Picture
See larger image
SeekIC No. : 00214718 Detail

AM1214-250: Transistors Bipolar (BJT)

AM1214-250 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AM1214-250
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : NPN Collector- Emitter Voltage VCEO Max : 70 V
Emitter- Base Voltage VEBO : 3.5 V Maximum DC Collector Current : 21 A
DC Collector/Base Gain hfe Min : 10 Configuration : Single Dual Base
Maximum Operating Frequency : 1400 MHz Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : Case M259
Packaging : Tube

Description

Transistor Polarity : NPN
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Tube
DC Collector/Base Gain hfe Min : 10
Collector- Emitter Voltage VCEO Max : 70 V
Emitter- Base Voltage VEBO : 3.5 V
Maximum DC Collector Current : 21 A
Maximum Operating Frequency : 1400 MHz
Configuration : Single Dual Base
Package / Case : Case M259


Features:

• REFRACTORY /GOLD METALLIZATION
• EMITTER SITE BALLASTING
• LOW RF THERMAL RESISTANCE
• INPUT/OUTPUT MATCHING
• OVERLAY GEOMETRY
• METAL/CERAMIC HERMETIC PACKAGE
• POUT = 300 W MIN. WITH 8.0 dB GAIN
• 1215-1400 MHz OPERATION




Pinout

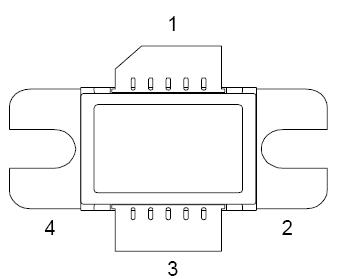

Connection Diagram


Specifications

Symbol Parameter Value Unit
PDISS Power Dissipation (TC £ 85°C)* 786 W
IC Device Current* 21 A
VCBO Collector-Base Voltage 70 V
Tj Operating Junction Temperature +250 °C
TSTG Storage Temperature -65 to +200 °C



Description

The AM1214-250 is a rugged, Class C common base device designed for new L - Band medium & long pulse radar applications. Minimal amplitude droop over a long pulse of 500 microsec. is guaranteed by a thermal design incorporating an overlay site-ballasted die geometry.
