Product Details

Description



Features:

- Low Gate Charge
- Single Drive Requirement
- Surface Mount Package
- Pb Free Plating Product


Pinout

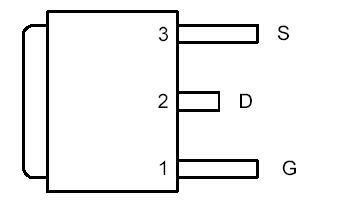

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage 60 V
VGS Gate-Source Voltage ±25 V
ID Continuous Drain Current, VGS=10V TC=25 11 A
TC=100 6.8
IDM Pulsed Drain Current (Note 1) 45 A
PD Total Power Dissipation TC=25 24 W/
Linear Derating Factor 0.17
TSTG Storage Temperature Range -55 to 150
TJ Operating Junction Temperature Range -55 to 150



Description

The AF4978N advanced power MOSFET provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-252 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.
