AF4928N

Features: - Low On-resistance- Simple Drive Requirement- Dual N MOSFET Package- Pb Free Plating ProductPinoutSpecifications Symbol Parameter Rating Units VDS Drain-Source Voltage 30 V VGS Gate-Source Voltage ±20 V ID Continuous Drain Current (Note 1) TA=25ºC 6.8 A ...

product image

AF4928N Picture
See larger image
SeekIC No. : 004278456 Detail

AF4928N: Features: - Low On-resistance- Simple Drive Requirement- Dual N MOSFET Package- Pb Free Plating ProductPinoutSpecifications Symbol Parameter Rating Units VDS Drain-Source Voltage 30 V ...

AF4928N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AF4928N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Low On-resistance
- Simple Drive Requirement
- Dual N MOSFET Package
- Pb Free Plating Product

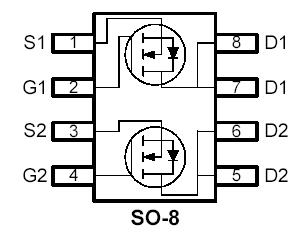

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage 30 V
VGS Gate-Source Voltage ±20 V
ID Continuous Drain Current (Note 1) TA=25ºC 6.8 A
TA=70ºC 5.5
IDM Pulsed Drain Current (Note 2) 40 A
IS Continuous Source Current (Diode Conduction) (Note 1) 2 A
PD Total Power Dissipation TA=25ºC 0.016 W
Linear Derating Factor
TJ Storage Temperature Range -55 to 150 ºC
TSTG Operating Junction Temperature Range -55 to 150 ºC



Description

The AF4928N advanced power MOSFET provides the designer with the best combination of fast switching, ruggedized device design, ultra low on-resistance and cost-effectiveness.
