Features: • Transceiver meets military data bus requirements, MIL-STD-1553 and MIL-STD-1760• Low power dissipation at full output power• Single +5V power supply• Current Source Transmitter Output• Bipolar Monolithic Construction• Miniature Chipscale Package Bump...
ACT44381: Features: • Transceiver meets military data bus requirements, MIL-STD-1553 and MIL-STD-1760• Low power dissipation at full output power• Single +5V power supply• Current Sour...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Operating Case Temperature | -55°C to +90°C |
Storage Case Temperature | -65°C to +150°C |
Positive Power Supply Voltage | -0.3 V to +7.0 V |
Receiver Differential Input | ±10 V |
Receiver Input Voltage (Common Mode) | ±5 V |
Driver Peak Output Current | 650 mA |
Total Package Power Dissipation over the full operating case temperature rise at 100% duty cycle |
2.2 Watt |
Maximum Junction to Case temperature rise | 44°C |
Thermal Resistance, Junction to bottom of case | 20°C/W |

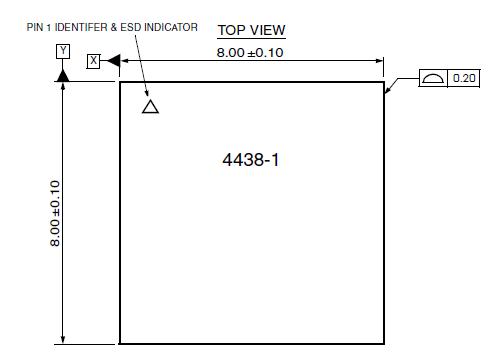

The Aeroflex Circuit Technology Model ACT4438-1 is a next generation monolithic transceiver which provide full compliance with MIL-STD-1553/1760 and data bus requirements in a Bumped Chip Carrier™ (BCC++) with the lowest standby power consumption and single power supply operation.
The Model ACT4438-1 performs the front-end analog function of inputting and outputting data through a transformer to a MIL-STD-1553/1760 data bus with a few external components.
Design of these transceivers ACT44381 reflects particular attention to active filter performance. This results in low bit and word error rate with superior waveform purity and minimal zero crossover distortion. Efficient transmitter electrical and thermal design provides low internal power dissipation and heat rise at high as well as low duty cycles.
