ACT4060

Features: ` 2A Output Current` Up to 95% Efficiency` 4.75V to 20V Input Range` 8A Shutdown Supply Current` 420kHz Switching Frequency` Adjustable Output Voltage` Cycle-by-Cycle Current Limit Protection` Thermal Shutdown Protection` Frequency FoldBack at Short Circuit` Stability with Wide...

product image

ACT4060 Picture
See larger image
SeekIC No. : 004267987 Detail

ACT4060: Features: ` 2A Output Current` Up to 95% Efficiency` 4.75V to 20V Input Range` 8A Shutdown Supply Current` 420kHz Switching Frequency` Adjustable Output Voltage` Cycle-by-Cycle Current Limit ...

ACT4060 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACT4060
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2A Output Current
` Up to 95% Efficiency
` 4.75V to 20V Input Range
` 8A Shutdown Supply Current
` 420kHz Switching Frequency
` Adjustable Output Voltage
` Cycle-by-Cycle Current Limit Protection
` Thermal Shutdown Protection
` Frequency FoldBack at Short Circuit
` Stability with Wide Range of Capacitors,
   Including Low ESR Ceramic Capacitors
` SOP-8 Package


Application

· TFT LCD Monitors
· Portable DVDs
· Car-Powered or Battery-Powered Equipments
· Set-Top Boxes
· Telecom Power Supplies
· DSL and Cable Modems and Routers
· Termination Supplies

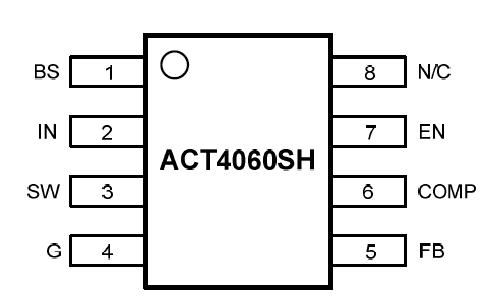

Pinout

Connection Diagram


Specifications

PARAMETER VALUE UNIT
IN Supply Voltage -0.3 to 25 V
SW Voltage -1 to VIN + 1 V
BS Voltage VSW - 0.3 to VSW + 8 V
EN, FB, COMP Voltage -0.3 to 6 V
Continuous SW Current Internally Limite A
Junction to Ambient Thermal Resistance (JA) 105 °C/W
Maximum Power Dissipation 0.76 W
Operating Junction Temperature -40 to 150 °C
Storage Temperature -55 to 150 °C
Lead Temperature (Soldering, 10 sec) 300 °C



Description

The ACT4060 is a current-mode step-down DC/DC converter that generates up to 2A of output current at 420kHz switching frequency. The device utilizes Active-Semi's proprietary ISOBCD20 process for operation with input voltages up to 20V.

Consuming only 8A in shutdown mode, the ACT4060 is highly efficient with peak operating efficiency at 95%. Protection features include cycle-bycycle current limit, thermal shutdown, and frequency foldback at short circuit.

The ACT4060 is available in a SOP-8 package and requires very few external devices for operation.
