ACT4070

Features: 3A Output CurrentUp to 95% Efficiency4.5V to 30V Input Range6A Shutdown Supply Current400kHz Switching FrequencyAdjustable Output VoltageCycle-by-Cycle Current Limit ProtectionThermal Shutdown ProtectionInternal Soft Start Function Frequency Fold Back at Short CircuitStability with Wide ...

product image

ACT4070 Picture
See larger image
SeekIC No. : 004267988 Detail

ACT4070: Features: 3A Output CurrentUp to 95% Efficiency4.5V to 30V Input Range6A Shutdown Supply Current400kHz Switching FrequencyAdjustable Output VoltageCycle-by-Cycle Current Limit ProtectionThermal Shut...

ACT4070 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACT4070
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3A Output Current
Up to 95% Efficiency
4.5V to 30V Input Range
6A Shutdown Supply Current
400kHz Switching Frequency
Adjustable Output Voltage
Cycle-by-Cycle Current Limit Protection
Thermal Shutdown Protection
Internal Soft Start Function
Frequency Fold Back at Short Circuit
Stability with Wide Range of Capacitors, Including Low ESR Ceramic Capacitors
SOP-8/EP (Exposed Pad) Package


Application

TFT LCD Monitors or Televisions and HDTV
Portable DVD Players
Car-Powered or Battery-Powered Equipment
Set-Top Boxes
Telecom Power Supplies
DSL and Cable Modems and Routers


Pinout

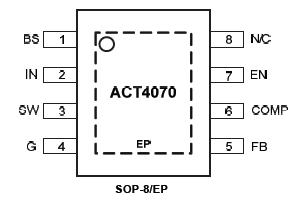

Connection Diagram


Specifications

PARAMETER
VALUE
UNIT
IN to G
-0.3 to +34
V
EN to G
-0.3 to VIN + 0.3
V
SW to G
-1 to VIN + 1
V
BS to SW
-0.3 to +8
V
FB, COMP to G
-0.3 to 6
V
Continuous SW Current
Internally limited
A
Junction to Ambient Thermal Resistance (JA)
46
°C/W
Maximum Power Dissipation
1.8
W
Operating Junction Temperature
-40 to 150
°C
Storage Temperature
-55 to 150
°C
Lead Temperature (Soldering, 10 sec)
300
°C
: Do not exceed these limits to prevent damage to the device. Exposure to absolute maximum rating conditions for long periods may affect device reliability


Description

The ACT4070 is a current-mode step-down DC/DC converter that generates up to 3A output current at 400kHz switching frequency. The device utilizes Active-Semi's proprietary ISOBCD30 process for operation with input voltage up to 30V.

Consuming only 6A in shutdown mode, the ACT4070 is highly efficient with peak efficiency at 95% when in operation. Protection features include cycle-by-cycle current limit, thermal shutdown, and frequency fold back at short circuit. The device also includes an internal soft start function to prevent overshoot.

The ACT4070 is available in SOP-8/EP exposed pad package and requires very few external devices for operation.
