A49LF040

• Single Power Supply Operation
- Low voltage range: 3.0 V - 3.6 V for Read and Write Operations
• Standard Intel Low Pin Count Interface
- Read compatible to Intel® Low Pin Count (LPC) interface
• Memory Configuration
- 512K x 8 (4 Mbit)
• Block Architecture
- 4Mbit: eight uniform 64KByte blocks
- Supports full chip erase for Address/Address Multiplexed (A/A Mux) mode
• Automatic Erase and Program Operation
- Embedded Byte Program and Block/Chip Erase algorithms
- Typical 10 µs/byte programming time
- Typical 1s block erase time
• Two Operational Modes
- Low Pin Count Interface (LPC) Mode for in-system operation
- Address/Address Multiplexed (A/A Mux) Interface Mode for programming equipment
• Low Pin Count (LPC) Mode
- 33 MHz synchronous operation with PCI bus
- 5-signal communication interface for in-system read and write operations
- Standard SDP Command Set
- Data# Polling (I/O7) and Toggle Bit (I/O6) features
- 4 ID pins for multi-chip selection
- 5 GPI pins for General Purpose Input Register
- TBL# pin for hardware write protection to Boot Block
- WP# pin for hardware write protection to whole memory array except Boot Block
• Address/Address Multiplexed (A/A Mux) Mode
- 11-pin multiplexed address and 8-pin data I/O interface
- Supports fast programming on EPROM programmers
- Standard SDP Command Set
- Data# Polling (I/O7) and Toggle Bit (I/O6) features
• Lower Power Consumption
- Typical 12mA active read current
- Typical 24mA program/erase current
• High Product Endurance
- Guarantee 100,000 program/erase cycles for each block
- Minimum 20 years data retention
• Compatible Pin-out and Packaging
- 32-pin (8 mm x 14 mm) TSOP (TYPE I)
- 32-pin PLCC

Temperature Under Bias . . . . . .. . . . . -55°C to + 125°C
Storage Temperature . . . . . . . . .. . . . -65°C to + 125°C
D.C. Voltage on Any Pins with Respect to Ground (1)
. . . . . . . . . . . . . . . . . . . . . . . . . . .  . . -0.5V to VDD + 0.5V
Package Power Dissipation Capability (Ta=25°C)
. . . . . . . . . . . . . . . . . . . . . . . .  . . . . . -0.5V to VDD + 0.5V
Output Short Circuit Current (2) . . . . . . . . . .. . . . . . 50mA
Notes:
1. Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, input or I/O pins may undershoot VSS to -2.0V for periods of up to 20ns. Maximum DC voltage on input and I/O pins is VDD + 0.5V. During voltage transitions, input or I/O pins may overshoot to VDD + 2.0V for periods up to 20ns.
2. No more than one output is shorted at a time. Duration of the short circuit should not be greater than one second.

The A49LF040 flash memory device is designed to be readcompatible with the Intel Low Pin Count (LPC) Interface Specification 1.1. This device is designed to use a single low voltage, range from 3.0 Volt to 3.6 Volt power supply to perform in-system or off-system read and write operations. It provides protection for the storage and update of code and data in addition to adding system design flexibility through five general-purpose inputs. Two interface modes are supported by the A49LF040: Low Pin Count (LPC) Interface mode for In-System programming and Address/Address Multiplexed (A/A Mux) mode for fast factory programming of PC-BIOS applications.

The memory is divided into eight uniform 64Kbyte blocks that can be erased independently without affecting the data in other blocks. Blocks also can be protected individually to prevent accidental Program or Erase commands from modifying the memory. The Program and Erase operations are executed by issuing the Program/Erase commands into the command interface by which activating the internal control logic to automatically process the Program/Erase procedures. The device can be programmed on a byte-bybyte basis after performing the Erase operation. In addition to the Block Erase operation, the Chip Erase feature is provided in A/A Mux mode that allows the whole memory to be erased in one single Erase operation.

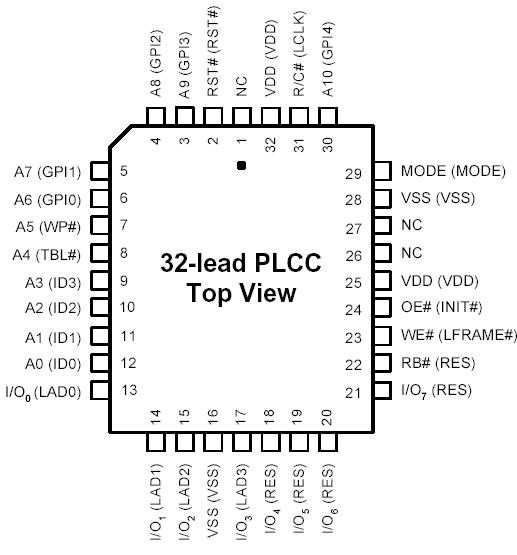

The A49LF040 provides the status detection such as Data# Polling and Toggle Bit Functions in both LPC and A/A Mux modes. The process or completion of Program and Erase operations can be detected by reading the status bits. The A49LF040 is offered in 32-lead TSOP and 32-lead PLCC packages. See Figures 1 and 2 for pin assignments and Table 1 for pin descriptions.
