MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:2008+ D/C:500
X4323S8I-2.7, X4325, X4325S8-2.7 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Intersil
Package Cooled: 2008+
D/C: 500
Description: IC CPU SUPRV 32K EE RST LO 8SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: X4323S8I-2.7
File Size: 341362 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: X4325
File Size: 341362 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: X4325S8-2.7
File Size: 341362 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
| Technical/Catalog Information | X4323S8I-2.7 |
| Vendor | Intersil |
| Category | Integrated Circuits (ICs) |
| Output | Open Drain or Open Collector |
| Reset | Active Low |

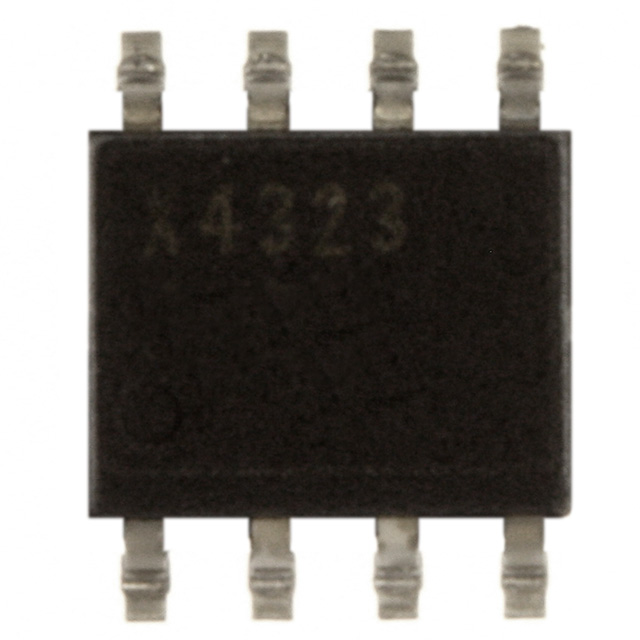

| Package / Case | 8-SOIC |
| Packaging | Tube |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 100 ms Minimum |
| Type | Simple Reset/Power-On Reset |
| Voltage - Threshold | 2.62V |
| Operating Temperature | -40°C ~ 85°C |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | X4323S8I 2 7 X4323S8I27 |
The X4163/5 combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Serial EEPROM Memory in one package.This combination lowers system cost, reduces board space requirements, and increases reliability.
Applying power to the device activates the power on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor can execute code.
The Watchdog Timer provides an independent protection mechanism for microcontrollers. When the microcontroller fails to restart a timer within a selectable time out interval, the device activates the RESET/RESET signal. The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.
The device's low VCC detection circuitry protects the user's system from low voltage conditions, resetting the system when VCC falls below the set minimum VCC trip point. RESET/RESET is asserted until VCC returns to proper operating level and stabilizes. Four industry standard VTRIP thresholds are available, however, Intersil's unique circuits allow the threshold to be reprogrammed to meet custom requirements or to fine-tune the threshold for applications requiring higher precision.
