MFG:Quatech/DPAC Technologies Category:RF and RFID D/C:08+/09+
WLNB-SE-DP101-G, WLNG-AN-DP101-G, WLNG-ET-DP101-G Datasheet download
Category: RF and RFID
MFG: Quatech/DPAC Technologies
Package Cooled:
D/C: 08+/09+
Description: MODULE 802.11B/G ETHERNET BRIDGE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: WLNJG
File Size: 151062 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: WLNJG
File Size: 151062 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: WLNJG
File Size: 151062 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | WLNB-SE-DP101-G |
| Vendor | Quatech/DPAC Technologies |
| Category | RF and RFID |
| Frequency | 2.4GHz |
| Data Rate - Maximum | 54Mbps |
| Modulation or Protocol | DBPSK, DQPSK, CCK |
| Applications | ISM, Military, POS |
| Power - Output | 15dBm |
| Sensitivity | -90dBm |
| Voltage - Supply | 3.3V |
| Current - Receiving | 350mA |
| Current - Transmitting | 420mA |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 85°C |
| Data Interface | Connector, 36 Pin Header |
| Antenna Connector | U.FL |
| Packaging | Box |
| Memory Size | 512kB Flash, 126K SRAM |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | WLNB SE DP101 G WLNBSEDP101G 590 1035 ND 5901035ND 590-1035 |

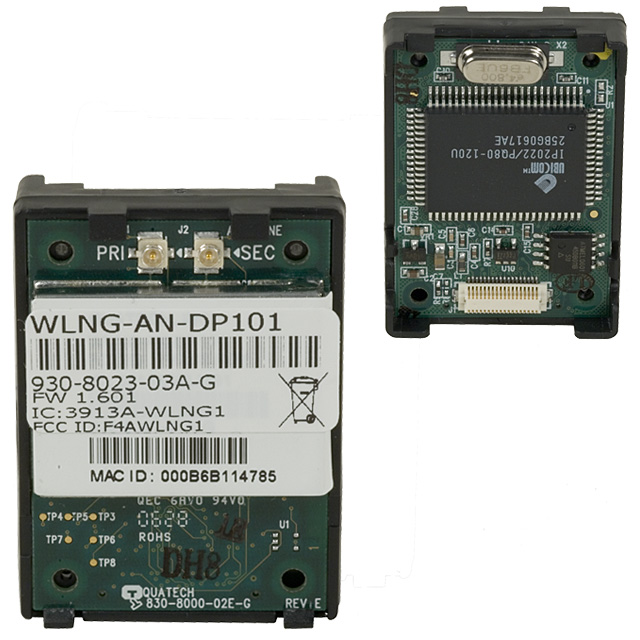

| Technical/Catalog Information | WLNG-AN-DP101-G |
| Vendor | Quatech/DPAC Technologies |
| Category | RF and RFID |
| Frequency | 2.4GHz |
| Data Rate - Maximum | 54Mbps |
| Modulation or Protocol | 802.11 b/g |
| Applications | Serial to 802.11b/g Wireless LAN |
| Power - Output | 12dBm ~ 19.3dBm |
| Sensitivity | -87dBm |
| Voltage - Supply | 3.3V |
| Current - Receiving | 375mA |
| Current - Transmitting | 575mA |
| Package / Case | Module |
| Operating Temperature | -30°C ~ 85°C |
| Data Interface | Connector, 36 Pin Header |
| Antenna Connector | U.FL x 2 |
| Packaging | Tray |
| Memory Size | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | WLNG AN DP101 G WLNGANDP101G 590 1015 ND 5901015ND 590-1015 |
| Technical/Catalog Information | WLNG-ET-DP101-G |
| Vendor | Quatech/DPAC Technologies |
| Category | RF and RFID |
| Frequency | 2.4GHz |
| Data Rate - Maximum | 54Mbps |
| Modulation or Protocol | 802.11 b/g |
| Applications | Serial to 802.11b/g Wireless LAN |
| Power - Output | 12dBm ~ 19.3dBm |
| Sensitivity | -87dBm |
| Voltage - Supply | 3.3V |
| Current - Receiving | 375mA |
| Current - Transmitting | 575mA |
| Package / Case | Module |
| Operating Temperature | -30°C ~ 85°C |
| Data Interface | Connector, 36 Pin Header |
| Antenna Connector | U.FL x 2 |
| Packaging | Tray |
| Memory Size | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | WLNG ET DP101 G WLNGETDP101G 590 1017 ND 5901017ND 590-1017 |
