VHS1-S12-S15-SIP, VHS1-S12-S5-SIP, VHS1-S5-S12-SIP

Table of contents:
Info of VHS1-S12-S15-SIP
Info of VHS1-S12-S5-SIP
Info of VHS1-S5-S12-SIP

VHS1-S12-S15-SIP, VHS1-S12-S5-SIP, VHS1-S5-S12-SIP Selling Leads, Datasheet

MFG:CUI Inc Category:Power Supplies D/C:08+/09+

VHS1-S12-S15-SIP, VHS1-S12-S5-SIP, VHS1-S5-S12-SIP Datasheet download

Five Points

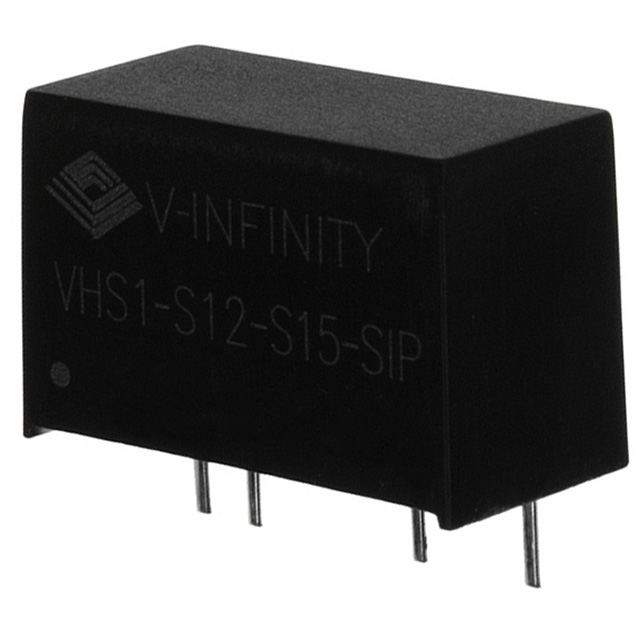

Part Number: VHS1-S12-S15-SIP

Category: Power Supplies

MFG: CUI Inc

Package Cooled:

D/C: 08+/09+

Description: CONVERTER DC/DC 12V OUT 1W

Price Break

1
10
25
50
100

Unit Price

8.80000
8.58000
8.36000
7.92000
7.26000

Extended Price

8.80
85.80
209.00
396.00
726.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

VHS1-S12-S15-SIP Parameters

Technical/Catalog Information	VHS1-S12-S15-SIP
Vendor	CUI Inc
Category	Power Supplies
Voltage - Input	10.8 ~ 13.2VDC
Output	15V
Power (Watts)	1W
Number of Outputs	1
1st Output	15 VDC @ 67mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	-
Package / Case	7-SIP (4 Leads)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VHS1 S12 S15 SIP VHS1S12S15SIP 102 1454 ND 1021454ND 102-1454

VHS1-S12-S5-SIP Parameters

Technical/Catalog Information	VHS1-S12-S5-SIP
Vendor	CUI Inc
Category	Power Supplies
Voltage - Input	10.8 ~ 13.2VDC
Output	5V
Power (Watts)	1W
Number of Outputs	1
1st Output	5 VDC @ 200mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	-
Package / Case	7-SIP (4 Leads)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VHS1 S12 S5 SIP VHS1S12S5SIP 102 1452 ND 1021452ND 102-1452

VHS1-S12-S5-SIP General Description

Designed to convert fixed voltages into an isolated voltage, the VHS1-SIP series is well suited for providing board-mount local supplies in a wide range of applications, including mixed analog/digital circuits, test & measurement equip., process/machine controls, datacom/telecom fields, etc...

The semi-regulated output can be followed by 3-terminal regulators to provide output protection, in addition to output regulation.

VHS1-S12-S5-SIP Features

`Isolated 1 W output
`Temperature range: -40~+85
`Unregulated
`High efficiency to 78%
`Single voltage output
`Small footprint
`SIP package style
`Industry standard pinout
`UL94-V0 package
`No heatsink required
`6K Vdc isolation
`Power density 0.85 W/cm³
`No external component required
`Low cost

VHS1-S5-S12-SIP Parameters

Technical/Catalog Information	VHS1-S5-S12-SIP
Vendor	CUI Inc
Category	Power Supplies
Voltage - Input	4.5 ~ 5.5V
Output	12V
Power (Watts)	1W
Number of Outputs	1
1st Output	12 VDC @ 84mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	-
Package / Case	7-SIP (4 Leads)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VHS1 S5 S12 SIP VHS1S5S12SIP 102 1450 ND 1021450ND 102-1450
