MFG: FTDI, Future Technology Devices International Ltd
Package Cooled: MODULE
D/C: 08+/09+
Description: MOD MCU-USB HOST CTLR 24-DIP
Attentive hint
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
• NPT IGBT's - positive temperature coefficient of saturation voltage - fast switching • FRED diodes - fast reverse recovery - low forward voltage • Industry Standard Package - solderable pins for PCB mounting - isolated DCB ceramic base plate
VDI50-12P1 Typical Application
• AC and DC motor control • AC servo and robot drives • power supplies • welding inverters
VDIP1 Parameters
Technical/Catalog Information

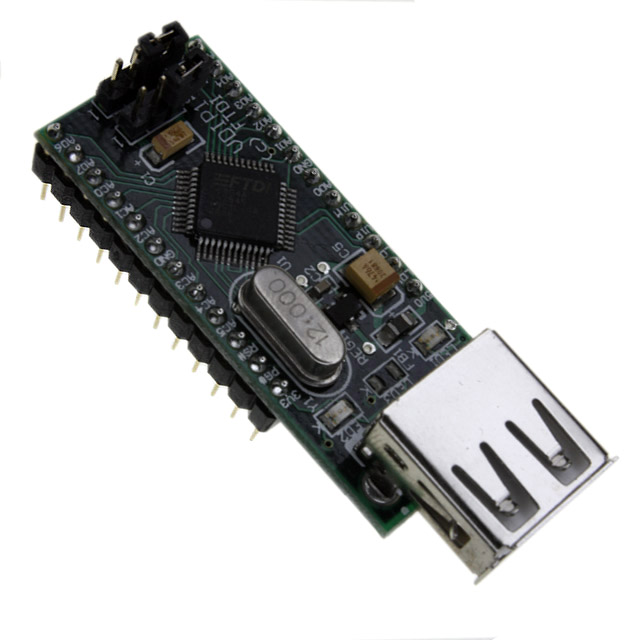

VDIP1
Vendor
FTDI, Future Technology Devices International Ltd
Category
Programmers, Development Systems
Main Purpose
Interface, USB 2.0 Host/Controller
Primary Attributes
Single A-Type Connector, UART / Parallel FIFO / SPI Interfaces
Secondary Attributes
Second USB Port is Available via Pins, Traffic LEDs
Supplied Contents
Board
Utilized IC / Part
VNC1L-1A
Embedded
No
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
VDIP1 VDIP1 768 1001 ND 7681001ND 768-1001
VDIP1 Features
Uses F.T.D.I.'s VNC1L embedded USBUS host controller I.C. device. • USBUS 'A''A type socket to interface with UUSBS peripheral devices • Second UUSBS interface port available via module pins, if required. • Jumper selectable UARUART, parallel FIFO,O or SPI MCU interfaces. • Single 5V supply input. • Auxiliary 3.3 V / 200 mA power output to external logic. • Power indicator, and USB traffic indicator LED's. • Pro gra m or update fir mware via USB Flash dis k or via U ART / para llel FIFO / SP I interface. • VNC1L fir mware pro gra mmin g contro l pins P ROG# and RESE T# bro ught o ut onto jumper interface • VDIP1 is a Pb-free, RoHS complaint development module. • VDIP1 mod ule is s upplied pre -loaded wit h Vinc ulum VDAP fir mware. • Schematics, and firmware files avaiable for downoad from the Vinculum website.
