MFG:Panasonic - SSG (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-666 D/C:2004
UP0121E00L, UP01411600L, UP0331200L Datasheet download
Category: Discrete Semiconductor Products
MFG: Panasonic - SSG (VA)
Package Cooled: SOT-666
D/C: 2004
Description: TRANS ARRAY NPN/PNP SSMINI-5P
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: UP01113
File Size: 116600 KB
Manufacturer: PANASONIC
Download : Click here to Download
PDF/DataSheet Download
Datasheet: UP01113
File Size: 116600 KB
Manufacturer: PANASONIC
Download : Click here to Download
PDF/DataSheet Download
Datasheet: UP01113
File Size: 116600 KB
Manufacturer: PANASONIC
Download : Click here to Download
| Technical/Catalog Information | UP0331200L |
| Vendor | Panasonic - SSG (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 125mW |
| Resistor - Base (R1) (Ohms) | 22K |
| Resistor - Emitter Base (R2) (Ohms) | 22K |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300A, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V |
| Frequency - Transistion | 80MHz, 150MHz |
| Mounting Type | Surface Mount |

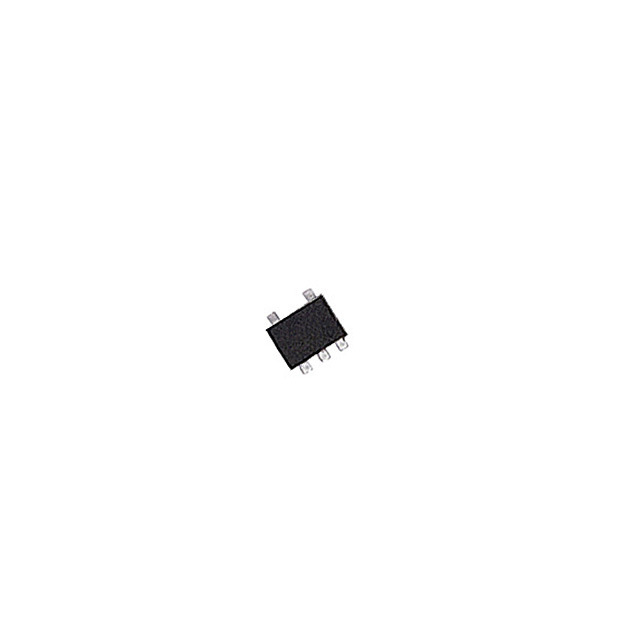

| Package / Case | SS Mini 5P |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | UP0331200L UP0331200L UP0331200LCT ND UP0331200LCTND UP0331200LCT |
