MFG:Panasonic - SSG Category:Discrete Semiconductor Products Package Cooled:SOT-23 D/C:08+09+
UNR211FOOL, UNR211H, UNR211H00L Datasheet download
Category: Discrete Semiconductor Products
MFG: Panasonic - SSG

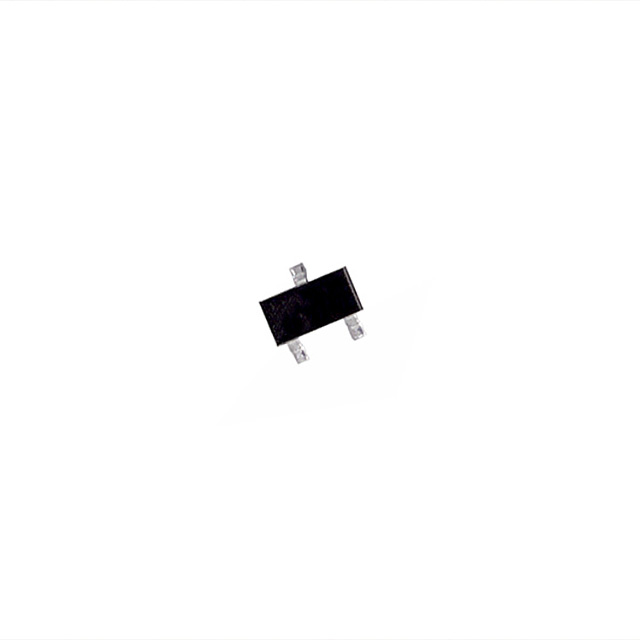

Package Cooled: SOT-23
D/C: 08+09+
Description: TRANS PNP W/RES 30 HFE MINI 3P
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: UNR-1.2/10-D5SM
File Size: 160015 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: UNR211H
File Size: 454195 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: UNR-1.2/10-D5SM
File Size: 160015 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | UNR211H00L |
| Vendor | Panasonic - SSG |
| Category | Discrete Semiconductor Products |
| Transistor Type | PNP - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Resistor - Base (R1) (Ohms) | 2.2K |
| Resistor - Emitter Base (R2) (Ohms) | 10K |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300A, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 10V |
| Frequency - Transistion | 80MHz |
| Mounting Type | Surface Mount |
| Package / Case | Mini 3P |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | UNR211H00L UNR211H00L UNR211H00LTR ND UNR211H00LTRND UNR211H00LTR |
