UMG11NTR, UMG1N, UMG2

Table of contents:
Info of UMG11NTR
Info of UMG1N
Info of UMG2

UMG11NTR, UMG1N, UMG2 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT353 D/C:02+

UMG11NTR, UMG1N, UMG2 Datasheet download

Five Points

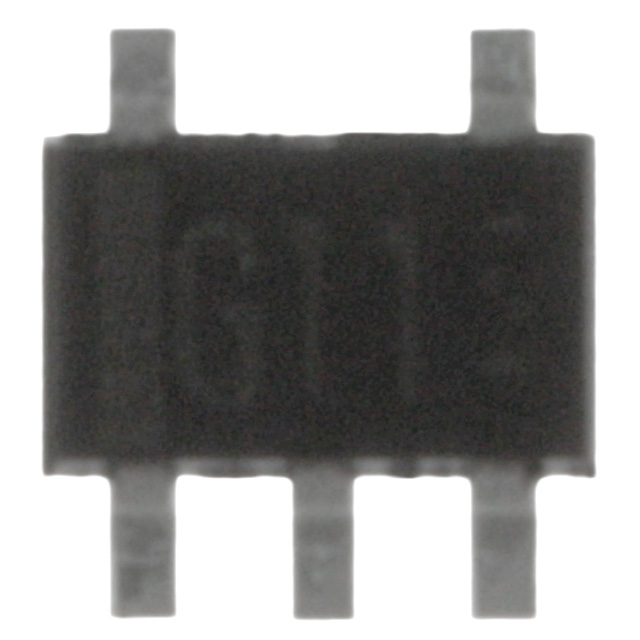

Part Number: UMG11NTR

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOT353

D/C: 02+

Description: TRANS DUAL NPN 50V 100MA SOT-353

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

UMG11NTR Parameters

Technical/Catalog Information	UMG11NTR
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	2 NPN - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	300mW
Resistor - Base (R1) (Ohms)	2.2K
Resistor - Emitter Base (R2) (Ohms)	47K
Vce Saturation (Max) @ Ib, Ic	300mV @ 250A, 5mA
Current - Collector Cutoff (Max)	500nA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 10mA, 5V
Frequency - Transition	250MHz
Mounting Type	Surface Mount
Package / Case	SC-70-5, SC-88A, SOT-323-5, SOT-353
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UMG11NTR UMG11NTR UMG11NDKR ND UMG11NDKRND UMG11NDKR

UMG1N Maximum Ratings

Paramete		Symbo	Limits	Unit
Supply voltage		VCC	50	V
Input voltage		VIN	40	V
			-10
Output current		IO	30	mA
Power dissipation	EMG1 / EMH1 / UMG1N / UMH1N / UMG5N	Pd	150(TOTAL)	mW
	FMG1A / IMH1A / IMH5A		300(TOTAL)
Junction temperature		Tj	150
Storage temperature		TSTG	-55~+150

UMG1N Features

Two DTC124E chips in a EMT or UMT or SMT package.
