TR1000, TR1001L, TR100A

Table of contents:
Info of TR1000
Info of TR1001L
Info of TR100A

TR1000, TR1001L, TR100A Selling Leads, Datasheet

MFG:RF MONOLITHICS INC (VA) Category:RF and RFID Package Cooled:NEW AND ORIGINAL D/C:03

TR1000, TR1001L, TR100A Datasheet download

Five Points

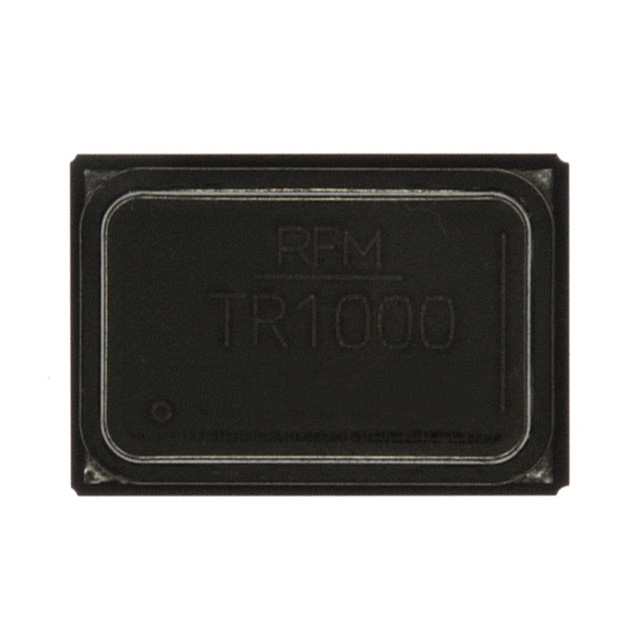

Part Number: TR1000

Category: RF and RFID

MFG: RF MONOLITHICS INC (VA)

Package Cooled: NEW AND ORIGINAL

D/C: 03

Description: ASH TR 115.2 KBPS 916.5 MHZ

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TR1000 Parameters

Technical/Catalog Information	TR1000
Vendor	RF MONOLITHICS INC (VA)
Category	RF and RFID
Frequency	916.5MHz
Data Rate - Maximum	115.2kbps
Modulation or Protocol	ASK, OOK
Applications	General Data Transfer
Power - Output	-
Sensitivity	-106dBm
Voltage - Supply	2.2 V ~ 3.7 V
Current - Receiving	3.8mA
Current - Transmitting	1.5mA
Package / Case	SM-20H
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Cut Tape (CT)
Memory Size	-
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	TR1000 TR1000 583 1088 1 ND 58310881ND 583-1088-1

TR1000 General Description

Designed for Short-Range Wireless Data Communications Supports RF Data Transmission Rates Up to 115.2 kbps 3 V, Low Current Operation plus Sleep Mode Stable, Easy to Use, Low External Parts Count Complies with Directive 2002/95/EC (RoHS)

TR1000 Maximum Ratings

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 916.30 916.70 MHz Modulation Types OOK & ASK OOK Data Rate 30 kbps ASK Data Rate 115.2 kbps Receiver Performance High Sensitivity Mode Sensitivity 2.4 kbps 10-3 BER AM Test Method Method -106 dBm Sensitivity 2.4 kbps 10-3 BER Pulse Test -100 dBm Current 2.4 kbps (RPR = 330 K) 3.0 mA Sensitivity 19.2 kbps 10-3 BER AM Test Method -101 dBm Sensitivity 19.2 kbps 10-3 BER Pulse Test Method -95 dBm Current 19.2 kbps (RPR = 330 K) 3.1 mA Sensitivity 115.2 kbps 10-3 BER AM Test Method -97 dBm Sensitivity 115.2 kbps 10-3 BER Pulse Test Method -91 dBm Current 115.2 kbps 3.8 mA Receiver Performance Low Current Mode Sensitivity 2.4 kbps 10-3 BER AM Test Method -104 dBm Sensitivity 2.4 kbps 10-3 BER Pulse Test Method -98 dBm Current 2.4 kbps (RPR = 1100 K) 1.8 mA Receiver Out-of-Band Rejection 5% fo R5% 80 dB Receiver Ultimate Rejection RULT 100 dB

TR1000 Features

Designed for Short-Range Wireless Data Communications
Supports RF Data Transmission Rates Up to 115.2 kbps
3 V, Low Current Operation plus Sleep Mode
Stable, Easy to Use, Low External Parts Count

TR1000 Connection Diagram
