TQ2SL-24V, TQ2SL-3V, TQ2SL-4.5V

Table of contents:
Info of TQ2SL-24V
Info of TQ2SL-3V
Info of TQ2SL-4.5V

TQ2SL-24V, TQ2SL-3V, TQ2SL-4.5V Selling Leads, Datasheet

MFG:Panasonic Electric Works Category:Relays Package Cooled:N/A D/C:2010+

TQ2SL-24V, TQ2SL-3V, TQ2SL-4.5V Datasheet download

Five Points

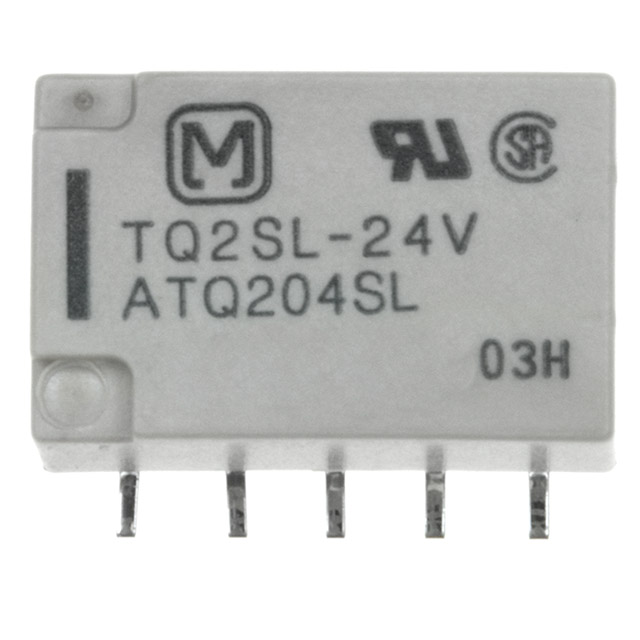

Part Number: TQ2SL-24V

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: N/A

D/C: 2010+

Description: RELAY 2A 4.5VDC LOW PROFILE SMD

Price Break

1
25
50
100
500
1000
5000
10000
25000

Unit Price

3.80000
3.48760
3.10000
2.63500
2.32500
2.24750
2.17000
2.06150
2.01500

Extended Price

3.80
87.19
155.00
263.50
1162.50
2247.50
10850.00
20615.00
50375.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TQ2SL-24V Parameters

Technical/Catalog Information	TQ2SL-24V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	2A @ 30VDC
Coil Voltage	24VDC
Control Off Voltage (Min)	2.4 VDC
Control On Voltage (Max)	18 VDC
Coil Current	8.3mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQ2SL 24V TQ2SL24V 255 2270 5 ND 25522705ND 255-2270-5

TQ2SL-3V Parameters

Technical/Catalog Information	TQ2SL-3V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	2A @ 30VDC
Coil Voltage	3VDC
Control Off Voltage (Min)	0.3 VDC
Control On Voltage (Max)	2.25 VDC
Coil Current	46.7mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQ2SL 3V TQ2SL3V 255 2271 5 ND 25522715ND 255-2271-5

TQ2SL-4.5V Parameters

Technical/Catalog Information	TQ2SL-4.5V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	2A @ 30VDC
Coil Voltage	4.5VDC
Control Off Voltage (Min)	0.45 VDC
Control On Voltage (Max)	3.38 VDC
Coil Current	31mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQ2SL 4 5V TQ2SL45V
